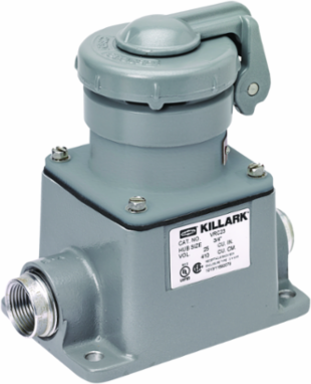

Killark UGRS-20232BQW 20A 250V Square Receptacle Quick-Wire with Breech-Lock Cap, NEMA 3, 4, 4X
- MPN: UGRS-20232BQW
- UPC: 783936124452
- PPN: HBL-UGRS-20232BQW
CAD
$1232.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20A 250V Square Receptacle Quick-Wire with Breech-Lock Cap
Features
- Available with Exclusive Breech-Lock Lid
- Patented lid notch allows for screwdriver, etc. to hold open lid for easier, two-hand installation.
- Factory Sealed Construction
- Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion
- Electrostatically applied and baked powder epoxy/polyester finish
- Dead Front Construction with Integral Switch – requires Hazardous Rated NEMA-Bladed Plug for operation
- Rotateable Design allows for installation flexibility
- The ACCEPTOR® UGRS-QW Hazardous Location Blade Style Receptacle complements the UGR-QW receptacle line. Used with ACCEPTOR® plugs, UGRS Receptacles utilize VERSAMATE® 30A mounting boxes. The rotateable design enables cover hinge location to be in most convenient position for application (may also be utilized with sheet metal enclosures which contain no arcing devices). UGRS-QW Panel Mounted Receptacles are classified for use with other NEMA bladed-type explosion-proof and dust ignition devices. Factory sealed construction specifies that no additional external seals are required (except in Group B applications).
Specifications
Key Specifications
- Country of Origin
- United States
- Amperage Rating
- 20 A
- Number Of Poles
- 2
- Type
- Straight Blade
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D35D261
- Current Rating
- 200 A
- Receptacle Type
- Delayed Action
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936124452
Hazardous Rating(s)Class I, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Nema Rating3, 4, 4X, 7(B, C, D), 9(F, G)
Number Of Wires3
ARRA CompliantContact Manufacturer
Description - Invoice20A 250V SQUARE RECPT BREECH CAP QW
Harmonization Code8536698000
MSDS FlagNo
Factory SealedFactory Sealed
MaterialAluminum, Copper Free (less than 4/10 of 1%)
SeriesUGRS Series
BOX SIZE(in)
NAICS Code335931A102
