Pass & Seymour

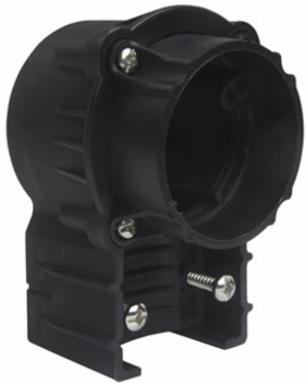

Pass & Seymour L203045AN 20A/30A 4-Wire and 5-Wire Right Angle Adapter

20A/30A 4-Wire and 5-Wire Right Angle Adapter
  • MPN: L203045AN
  • UPC: 785007165456
  • PPN: P-S-L203045AN

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$41.25/ EA

Description

20A/30A 4-Wire and 5-Wire Right Angle Adapter

Features

  • Angle plugs and adapters both allow for 4-position face rotation.
  • 20/30A 3 Wire Turnlok: Right Angle Adapters are adjustable up to 8 positions.
  • Angle adapters (sold separately) will accommodate all P&S Turnlok style plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter.
  • Tri-drive assembly and cord-grip screws are standard on all angle plugs and adapters.
  • Angle plugs and adapters have the same wide cord diameter range (.230''-1.150'') that is present on all Turnlok plugs and connectors.

Specifications

Specifications

Depth
1.65 in
Environmental Conditions
Flammability: UL94 V2: Operating Temperature: Maximum continuous +115°C, minimum -40°C without impact
Color
Black
Country of Origin
Mexico
Standard
UL498
Number of Wires
4.0
Number of Poles
Double Pole
NEMA Rating
5 Wire, 20/30 Amp, 4 Wire
Height3.868 in
Width2.675 in
Product LinePass & Seymour
Special FeaturesAngle plugs and adapters both allow for 4-position face rotation. Angle adapters will accommodate all P&S Turnlok style plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter. Tri-drive assembly and cord-grip screws are standard on all angle plugs and adapters. Angle plugs and adapters have the same wide cord diameter range (.230"-1.150") that is present on all Turnlok plugs and connectors.
Amperage20.0 A
Wire Size18 - 8 AWG
Application SectorIndustrial
