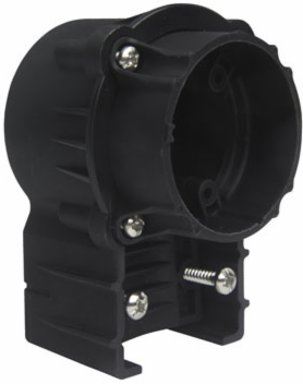

Pass & Seymour L20303AN 20A/30A 3-Wire Right Angle Adapter, Adjustable 8 Positions, Black
- MPN: L20303AN
- UPC: 785007165449
- PPN: P-S-L20303AN
CAD
$43.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A/30A 3-Wire Right Angle Adapter, Adjustable 8 Positions, Black
Features
- Angle plugs and adapters both allow for 4-position face rotation.
- 20/30A 3 Wire Turnlok: Right Angle Adapters are adjustable up to 8 positions.
- Angle adapters (sold separately) will accommodate all P&S Turnlok style plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter.
- Tri-drive assembly and cord-grip screws are standard on all angle plugs and adapters.
- Angle plugs and adapters have the same wide cord diameter range (.230''-1.150'') that is present on all Turnlok plugs and connectors.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.37 in |
|---|---|
| Height | 2.97 in |
| Width | 1.94 in |
| Amperage | 20.0 A |
| Wire Size | 18 - 8 AWG |
| Application Sector | Industrial |
| Special Features | Angle plugs and adapters both allow for 4-position face rotation. 20/30A 3 Wire Turnlok® Right Angle Adapters are adjustable up to 8 positions. Angle adapters will accommodate all P&S Turnlok style plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter. Tri-drive assembly and cord-grip screws are standard on all angle plugs and adapters. Angle plugs and adapters have the same wide cord diameter range (.230"-1.150") that is present on all Turnlok plugs and connectors. |
| Product Line | Pass & Seymour |
| Environmental Conditions | Flammability: UL94 V2: Operating Temperature: Maximum continuous +115°C, minimum -40°C without impact |
|---|---|
| Standard | UL498 |
| Country of Origin | Mexico |
| Number of Wires | 3.0 |
| Number of Poles | Double Pole |
| NEMA Rating | 20/30 Amp, 3 Wire |
| Color | Black |
