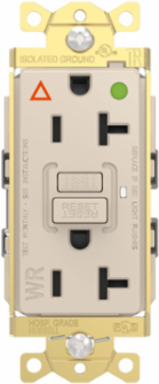

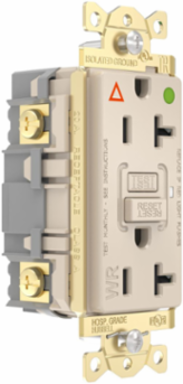

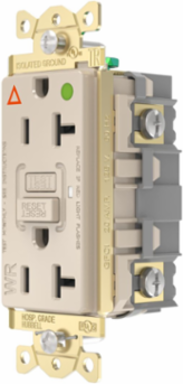

Hubbell Wiring Device-Kellems GFTWR83LAIG Fed Spec, Hospital Grade, 5-20R AUTOGUARD® Self-Testing, Self-Grounding GFCI
Hubbell Wiring Device-Kellems GFTWR83LAIG Fed Spec, Hospital Grade, 5-20R AUTOGUARD® Self-Testing, Self-Grounding GFCI
- MPN: GFTWR83LAIG
- UPC: 883778932144
- PPN: HBL-GFTWR83LAIG
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$138.11/ EA
Description
Straight Blade GFCI Receptacle, Tamper and Weather Resistant, Commercial Hospital Grade, Self Test, IG, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Light Almond
Features
- Isolated Ground minimizes noise for critical equipment.
- Patented AUTOGUARD® self test technology with LED power and trip indicator and lin-load reversal protection
- CLAD Technology for superior resistance to building noise

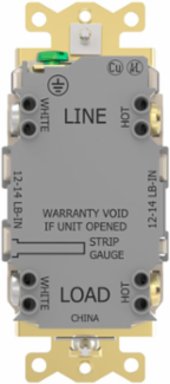

- Internal back wiring clamp and guide for quick and secure termination.
- Triple Wipe Construction for enhanced blade contact and long lasting plug retention
- Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications.
Specifications
Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 20 A
- Description - Slang
- GFI,GFR,GF
- Height
- 4.12 in
- Length
- 4.12 in
- Weight
- 0.4 lb.
- Nema Rating
- 5-20R
- Type
- Tamper-Resistant;Weather Resistant
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Series
- Hospital Grade
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00883778932144
- Case Weight
- 0.000
ColorLight Almond
Depth1.23 in
Dimensions4.12 in x 1.75 in x 4.12 in
Industry Standard(s)Meets All NEC® Requirements
Voltage Rating Description125 V
Width1.75 in
StyleIsolated Ground
Class CodeA40
Harmonization Code8536308000
Sub Class CodeA40A400
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Certifications
- EU RoHS Indicator
- Contact Manufacturer
