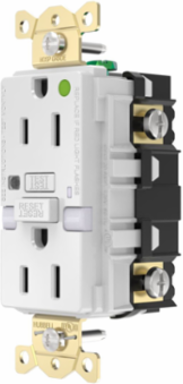

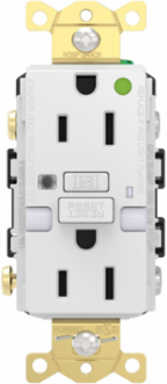

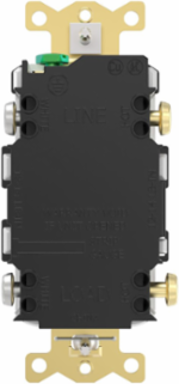

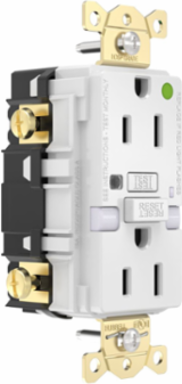

Hubbell Wiring Device-Kellems GFR82WNL Fed Spec, Hospital Grade, 5-15R AUTOGUARD® Self-Testing, Self-Grounding GFCI
- MPN: GFR82WNL
- UPC: 883778931673
- PPN: HBL-GFR82WNL
- UNSPSC: 39121406
CAD
$126.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Receptacle, GFCI, Commercial Hospital Grade, Self Test, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White, With Night Light
Features
- Night Light automatically turns on and off depending on ambient light level. Dual lens design for optimal light output.
- Patented AUTOGUARD® self test technology with LED power and trip indicator and lin-load reversal protection
- CLAD Technology for superior resistance to building noise
- Internal back wiring clamp and guide for quick and secure termination.
- Triple Wipe Construction for enhanced blade contact and long lasting plug retention
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Depth | 1.19 in |
| Dimensions | 4.12 in x 1.75 in x 4.12 in |
| Industry Standard(s) | Meets All NEC® Requirements |
| Color | White |
| Size | 4.12 in x 1.75 in x 4.12 in |
| Type | Standard |
| Weight | 0.4 lb. |
| Nema Rating | 5-15R |
| Class Code | A40 |
| Harmonization Code | 8536308000 |
| Sub Class Code | A40A400 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 49.000 in |
| Pallet Weight | 936.000 lb. |
| Current / Amperage Rating | 15 A |
|---|---|
| Description - Slang | GFI,GFR,GF |
| Height | 4.12 in |
| Length | 4.12 in |
| NEMA Rating | 5-15R |
| Standard | Meets All NEC® Requirements |
| Voltage Rating Description | 125 V |
| Width | 1.75 in |
| Style | Nightlight |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Series | Hospital Grade |
| BOX SIZE | 5.300x9.400x6.400 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00883778931673 |
| Case Weight | 16.310 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
