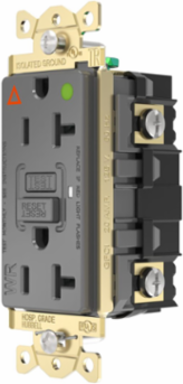

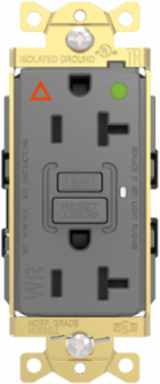

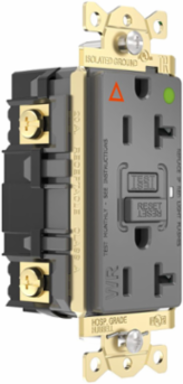

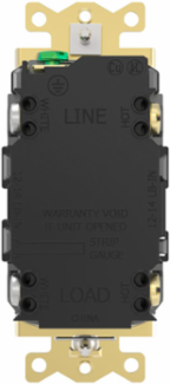

Hubbell Wiring Device-Kellems GFTWR83GYIG Fed Spec, Hospital Grade, 5-20R AUTOGUARD® Self-Testing, Self-Grounding GFCI

MPN: GFTWR83GYIG
UPC: 883778932113
PPN: HBL-GFTWR83GYIG

$138.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Straight Blade Devices, Receptacle, GFCI, Tamper and Weather Resistant, Commercial Hospital Grade, Self Test, IG , 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray

Features

Isolated Ground minimizes noise for critical equipment.
Patented AUTOGUARD® self test technology with LED power and trip indicator and lin-load reversal protection
CLAD Technology for superior resistance to building noise
Internal back wiring clamp and guide for quick and secure termination.
Triple Wipe Construction for enhanced blade contact and long lasting plug retention
Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications.

Specifications

Key Specifications

Country of Origin	China
Current / Amperage Rating	20 A
Description - Slang	GFI,GFR,GF
Height	4.12 in
Length	4.12 in
Weight	0.4 lb.
Nema Rating	5-20R
Type	Tamper-Resistant;Weather Resistant
Freight Class Code	06168002
Image Actual Or Representative	A
Series	Hospital Grade
BOX SIZE	0.000x0.000x0.000 (in)
Carton - Number of Sub Packs	10
Carton - SCC-14 Next Lower Level Sub Pack	00883778932113
Case Weight	0.000

Color	Gray
Depth	1.23 in
Dimensions	4.12 in x 1.75 in x 4.12 in
Industry Standard(s)	Meets All NEC® Requirements
Voltage Rating Description	125 V
Width	1.75 in
Style	Isolated Ground
Class Code	A40
Harmonization Code	8536308000
Sub Class Code	A40A400
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	10
Pallet Weight	0.000 lb.
