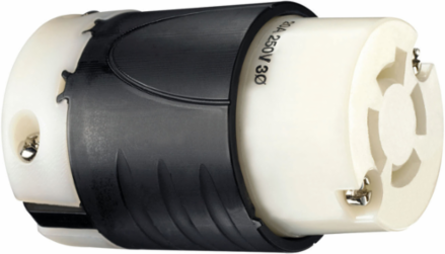

Pass & Seymour L1520C Turnlok 20A 3-Phase Connector, 3.33 Inch Length, Black Body
- MPN: L1520C
- UPC: 785007152012
- PPN: P-S-L1520C
CAD
$38.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Every component of these locking connectors are built to offer the lowest installed cost and maximum durability. Quick-threaded assembly screws install four times faster than cmpetitive products and backed-out screws come ready to wire. Rugged easy-to-grip nylon housing, clear thermoplastic terminal chambers as well as high-strength brass alloy contacts are all features of this premium Turnlok L1520C 4-Wire 20A 3-Phase 250V connector.
Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
- Raised ribs provide non-slip gripping profile for turning to lock and unlock.
- Double dovetail design provides superior protection against cord pull-out forces.
- Impact- and corrosion-resistant durable nylon 6 shell material.
- Rounded back contour reduces snags and hang-ups on the job site.
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
- Visible stamped NEMA configuration and device rating.
- New-design external cord grips provide visible assurance of safe and proper cord retention.
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
- Cord Diameter: 0.225 to 1.150 Inches
Documentation & Downloads
Specifications
Key Specifications
- Length
- 3.33 in
- Width
- 2.2 in
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Warranty Type
- 1-Year
- Type
- Locking Connector
- Standard
- UL Listed UL498
- Features
- Corrosion Resistant
- Application Sector
- Industrial
- NEMA Configuration Code
- L15-20R
- Special Features
- Locking Device, impact resistant
ColorBlack
Country of OriginMexico
FlangedNo
Voltage250.0 V
Number of Wires4.0
Indoor/OutdoorIndoor
Connector StyleLocking
Number of PolesDouble Pole
StandardFile Number E146159
ConnectionTurnLok Receptacle
Terminal Accommodation#14 AWG - #10 AWG
Environmental ConditionsFlamability Rating UL94 V2
