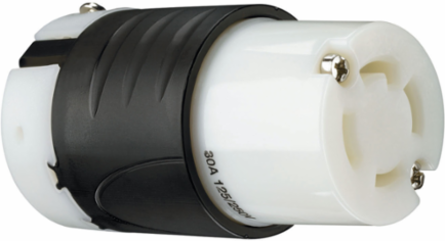

Pass & Seymour L1430C Turnlok 30A Connector - 3.33 Inch Length, Black and White
- MPN: L1430C
- UPC: 785007143010
- PPN: P-S-L1430C
CAD
$80.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Turnlok 30A Connector - 3.33 Inch Length, Black and White
Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
- Raised ribs provide non-slip gripping profile for turning to lock and unlock.
- Double dovetail design provides superior protection against cord pull-out forces.
- Impact- and corrosion-resistant durable nylon 6 shell material.
- Rounded back contour reduces snags and hang-ups on the job site.
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
- Visible stamped NEMA configuration and device rating.
- New-design external cord grips provide visible assurance of safe and proper cord retention.
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30.0 A
- Terminal Accommodation
- #4 AWG
- Width
- 2.2 in
- Number of Wires
- 3
- Connector Style
- Locking
- Shell Material
- Nylon 6
- Temperature Rise
- 30°C max after 50 cycles at 150% rated current
- Maximum Working Voltage
- 600 VAC
- Application Sector
- Industrial
- Color
- Black
- Indoor/Outdoor
- Indoor
- Warranty Type
- 1-Year
Voltage125/250 V
Length3.33 in
Number of PolesDouble Pole
TypeConnector
MaterialBrass, Nylon, Rubber
Operating Temperature-40°C to +75°C
Dielectric Withstand Voltage2200 V minimum
CompliancecULus Listed, FEDSPEC, UL 498
NEMA Configuration CodeL14-30R
Country of OriginMexico
Product LinePass & Seymour
