20A Watertight Pin & Sleeve Plug, 277/480V, 3.4 Inch x 6 Inch, Gray
Pass & Seymour

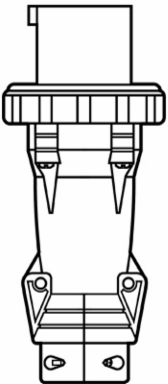

Pass & Seymour PS520P7W 20A Watertight Pin & Sleeve Plug, 277/480V, 3.4 Inch x 6 Inch, Gray

  • MPN: PS520P7W
  • UPC: 785007520071
  • PPN: P-S-PS520P7W

CAD

$339.16

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Four pole, Five wire, Pin and Sleeve Plug. 20 amp, 277/480 volt.

Features

  • Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
  • Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
  • Nylon construction for highimpact and corrosion resistance.
  • Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
  • Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
  • Natural-rubber grommets provide watertight protection at cable entry.
  • Combination-head screws for added convenience and quick installation.
  • Revolutionary, hinged cord grip for durable performance and ease of installation.
  • Cover with integral neoprene gasket provides watertight seal.

Documentation & Downloads

Specifications

Key Specifications

Height
3.4 in
Length
6.0 in
Width
3.4 in
Country of Origin
United States
Voltage
277.0 V
Number of Wires
5.0
Application Sector
Industrial
ColorGray
Product LinePass & Seymour
TypePlug Tail
Amperage20.0 A
StandardUL Listed
Number of Poles4-Way
Special FeaturesImpact, chemical resistant, non conductive retaining screw, brass male/female contacts
