Pass & Seymour

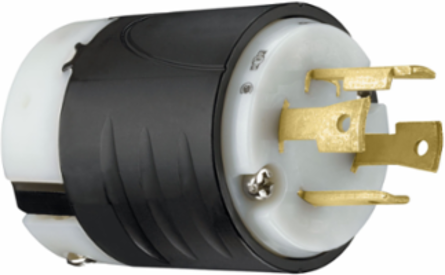

Pass & Seymour L1430P Turnlok 30A L14-30 Locking Plug, 3-Pole, 4-Wire, IP20, 0.225-1.15 Inch Compatibility

Turnlok 30A L14-30 Locking Plug, 3-Pole, 4-Wire, IP20, 0.225-1.15 Inch Compatibility
  • MPN: L1430P
  • UPC: 785007143041
  • PPN: P-S-L1430P

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$33.23/ EA

Description

3-Pole, 4-Wire, 30A, 125V/250V, NEMA L14-30P, IP20 suitability, cable compatibility 0.225-in to 1.15-in diameter. Used to plug/unplug a load consuming a maximum of 30A under a voltage of 250V between the two hot wires and 125V between the hot and the neutral wires to a connection to an electric power supply while protecting the user from direct contact with live parts for 20 years.

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

Amperage
30.0 A
Number of Wires
4
Operating Temperature
-40°C to +75°C
Material
Nylon, Brass, Rubber
Flammability
UL94 V2
Country of Origin
Mexico
Voltage125/250 V
NEMA Configuration CodeL14-30P
Dimensions (Depth x Width x Height)3.75 in x 2.2 in x 2.2 in
StandardUL498, FSUL WC596, CSA, NEMA WD-1 and WD-6
ColorBlack
