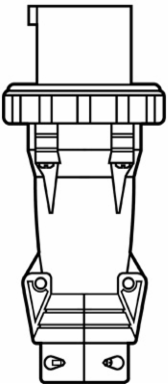

Pass & Seymour PS420P12W Watertight 20A 125V/250V Pin & Sleeve Plug, 3.2 Inch x 5.5 Inch
Pass & Seymour PS420P12W Watertight 20A 125V/250V Pin & Sleeve Plug, 3.2 Inch x 5.5 Inch
- MPN: PS420P12W
- UPC: 785007420364
- PPN: P-S-PS420P12W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$297.59/ EA
Description
Three pole, Four wire, Pin and Sleeve Plug, 20 amp, 125/250 volt.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Specifications
Specifications
- Height
- 3.2 in
- Special Features
- Pin & Sleeve devices, Nylon construction for high impact, combination head screws, rating compliance visible
- Width
- 3.2 in
- Product Line
- Pass & Seymour
- Voltage
- 125.0 V
- Standard
- UL Listed
- Number of Poles
- 3-Way
Length5.5 in
ColorGray
Country of OriginUnited States
Amperage20.0 A
Wire Size2 AWG
Number of Wires4.0
Application SectorCommercial
