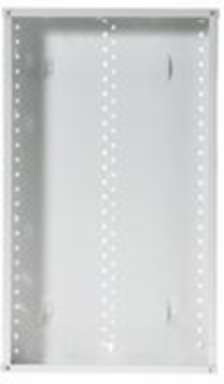

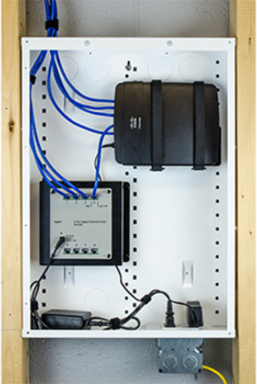

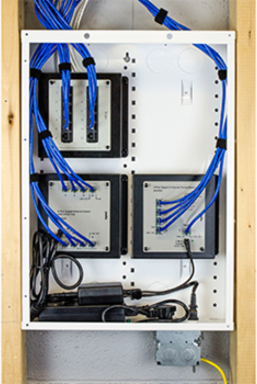

On-Q EN2080 20" Enclosure (no cover) EN2080
- MPN: EN2080
- UPC: 804428023104
- PPN: P-S-EN2080
- UNSPSC: 43223306
CAD
$91.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

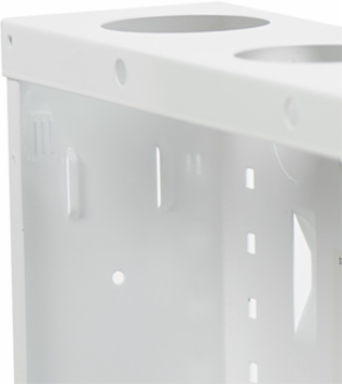

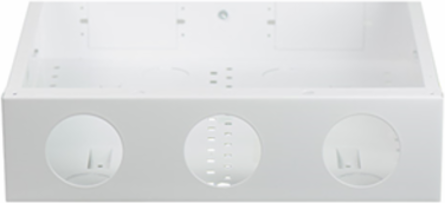

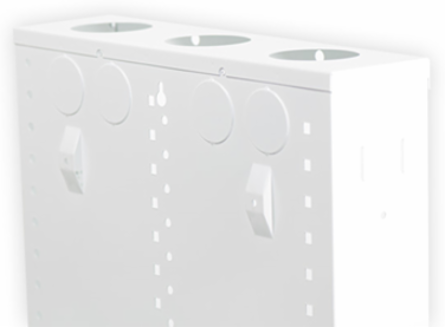

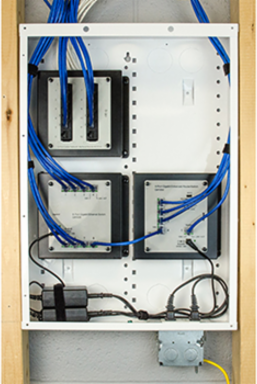

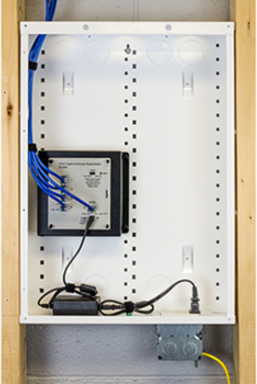

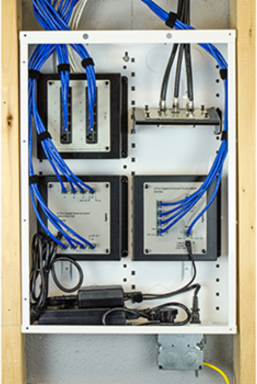

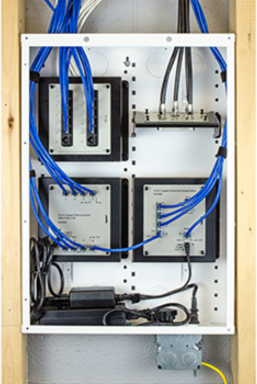

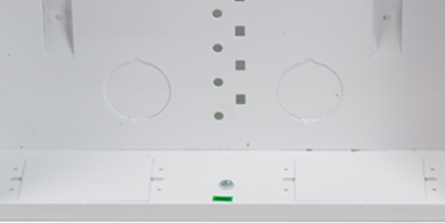

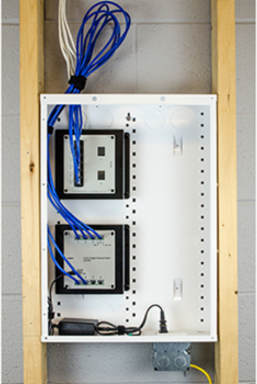

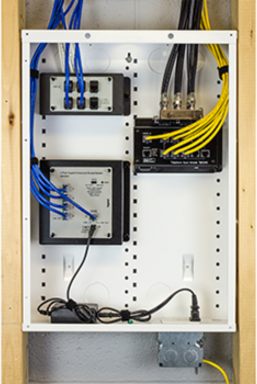

This 20" enclosure features universal On-Q bay-style mounting holes that are compatible with all bay-style modules. It also includes larger top openings that make pulling wire easier as well as additional knockouts, more side lances, and side tabs for more flexible mounting.
Features
- Flanged covers hide drywall openings
- Drywall depth indicators
- Flush and surface installation
- Mounting tabs provide correct flush-mount position for standard installations

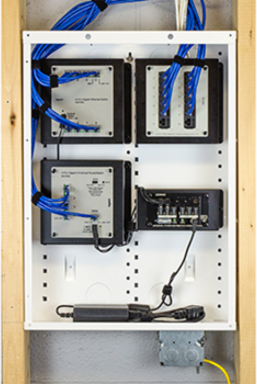

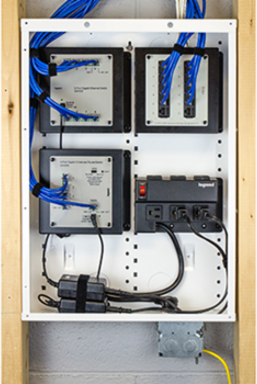

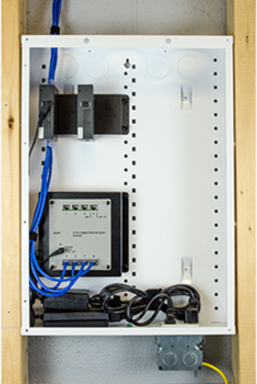

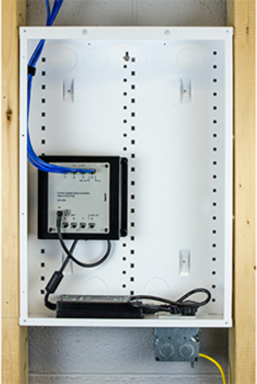

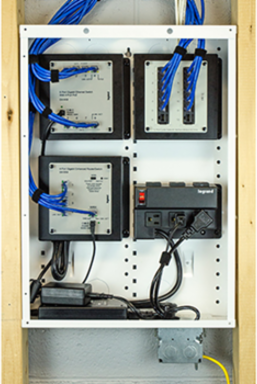

- Patented mounting system offers versatile module mounting options
- Literature pouch included for dealer information
- Includes self-adhesive cable identification table
- Made in the USA
Documentation & Downloads
Specifications
Technical Information
| Humidity | 90% Relative Humidity (Non-Condensing) |
|---|---|
| Mounting | Surface or Flush |
| Material | CRS |
|---|---|
| Operating Temperature (Celsius) | 0°C to 50°C |
Dimensions
| Depth (Metric) | 9.4 cm |
|---|---|
| Height (Metric) | 51.1 cm |
| Width (Metric) | 36.3 cm |
| Thickness (US) | 20 Gauge |
| Depth (US) | 3.7" |
|---|---|
| Height (US) | 20.1" |
| Width (US) | 14.3 in |
Construction Information
| Installation Location | In-Wall |
|---|
General Info
| Color | Glossy White |
|---|---|
| Type | Enclosure |
| Finish | Powder Coat |
|---|
Listing Agencies/Third Party Certifications
| RoHS | Yes |
|---|---|
| CSA Standard | Yes |
| UL Listing No | ANSI/UL 1863, ANSI/UL 985, ULC-S545, ANSI/UL 1023 |
| UN SPSC | 43223306 |
| CSA Listing Info | CSA-C22.2 No. 144.1 (2006), CAN/CSA-C22.2 No. 182.4-1990 |
|---|---|
| cULus | Yes |
| UL Standard | Yes |
