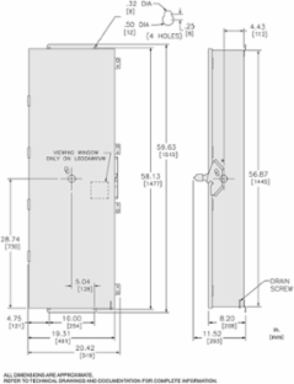

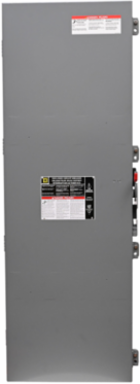

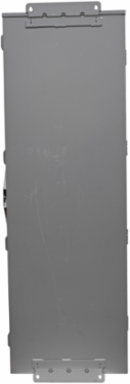

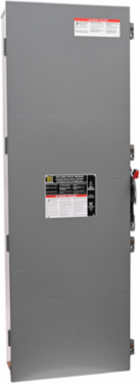

Square D CL600NAWK Circuit breaker enclosure, PowerPacT L, 250A to 600A, 3 pole, NEMA 12, galvannealed steel, without knockouts
- MPN: CL600NAWK
- UPC: 785901978558
- PPN: SCH-CL600NAWK
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact L circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure accepts 3 pole PowerPacT L breakers that have a current rating of 250 to 600A. This enclosure is NEMA 12/3R rated enclosure and is surface mounted. 3 pole The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth210 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Circuit Breaker Type
- LLL, LGL, LRL, LDL, LJL
- Carbon Footprint Of The Distribution Phase [A4]
- 15.402171726848028, 15 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.08939840083641958, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1408006EN
- Pep Verification Date
- 2025-09-25
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 1461 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 54.43 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencycUL, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]76 kg CO2 eq., 76.25606593026994
Carbon Footprint Of The Manufacturing Phase [A1 To A3]311 kg CO2 eq., 311.3030269557071
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Enclosure Materialgalvannealed steel
Number Of Poles3P
Product Destinationcircuit breaker 3P
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint403 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %95
Width Nominal518 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 403.0506630136615
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 12
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1408006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1408006EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Complementary Attributes
- Line Rated Current
- 250-600 A
