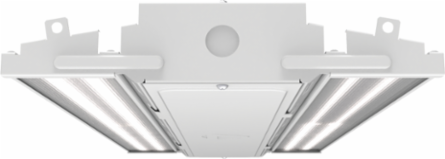

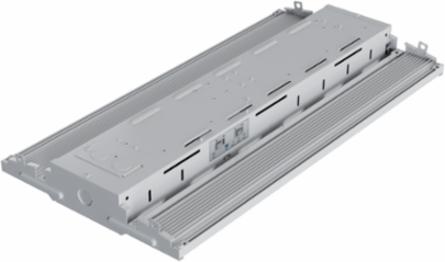

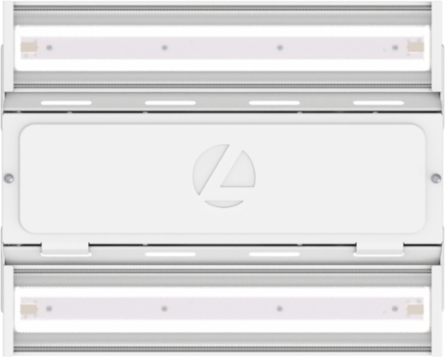

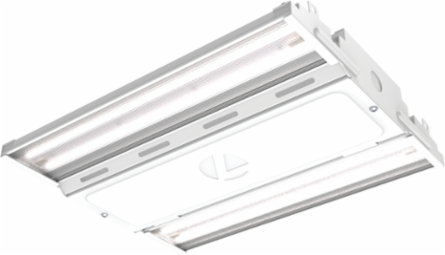

Acuity Brands CPHB ALO16 MVOLT SWW9 80CRI DWH OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life

OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
OLT High Bay Light, 22.5 x 11.5 x 2.4 Inch, 100,000 Hours Life
  • MPN: CPHB ALO16 MVOLT SWW9 80CRI DWH
  • UPC: 196183428578
  • PPN: LTH-CPHB ALO16 MVOLT SWW9 80CR
  • UNSPSC: 39112102

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$270.49/ EA

Description

Design Select

Features

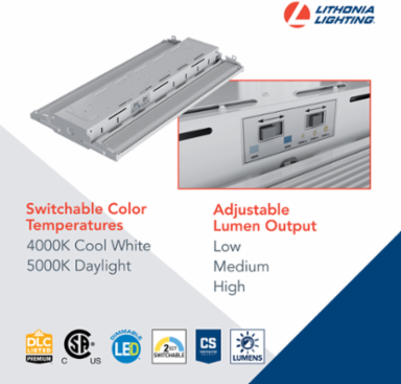

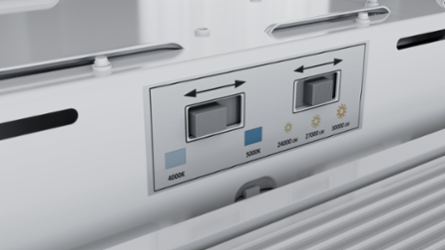

  • TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 12 configurations in 2 SKUs
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • DIMMING: Thermally protected driver standard with 0-10V dimming
  • RATINGS: CSA listed, Damp location listed, DLC 5.1 qualified, designed for ambient temperature ranging -40°C to 55°C
  • VOLTAGE: Standard MVOLT for 120-277 volts
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • INSTALLATION: Includes V-hanger hardware brackets and 2-36” chain lengths; also suitable for mounting by chain, cable, surface-mount bracket, or hook monopoint
  • BATTERY: Emergency battery pack available, sold separately
  • WARRANTY: 5-year limited warranty
  • DIMENSIONS: (l x w x h) 22.5 in. x 11.5 in. x 2.4 in.

Specifications

Voltage
120-277 V
Lumen Output Configurations
24000, 27000, 30000 lumens
Ambient Temperature Range
-40°C to 55°C
Weight
5 to 8 lbs depending on configuration
Construction Material
Extruded aluminum
Compliance
CSA listed, Damp location, DLC 5.1 qualified
Country of Origin
China
Average Life100,000 Hours
Surge Protection6kV/3kA per ANSI C82.77-5-2015
Dimensions22.84 in x 11.52 in x 2.42 in
MountingPendant, Surface, Suspended, V-hanger brackets, 36 in chain, cable, hook monopoint
LensGlare Control Lens meeting DLC 5.1 UGR standards
ColorWhite
