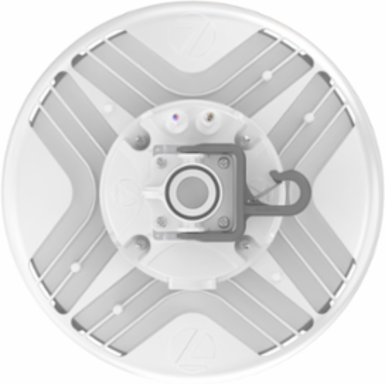

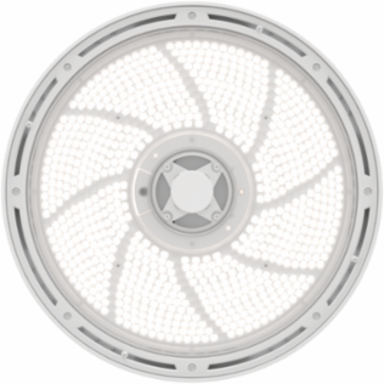

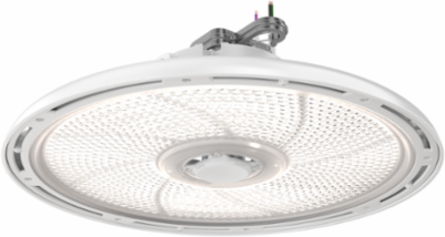

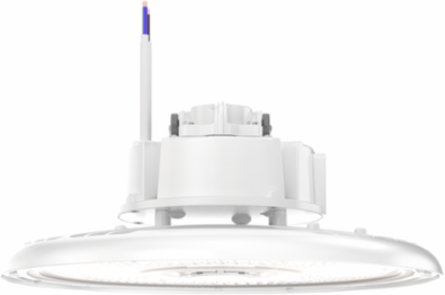

Acuity Brands REBL ALO13 UVOLT SWW3 80CRI DWH M2 LED Round High Bay, Switchable Lumens- 12000LM, 15000LM and 18000LM, 120-347V, Switchable CCT- 3500K, 4000K and 5000K, 80 color rendering index, White
- MPN: REBL ALO13 UVOLT SWW3 80CRI DWH M2
- UPC: 197590119349
- PPN: LTH-REBL ALO13 UVOLT SWW3 80CRI DWH M2
- UNSPSC: 39112102
CAD
$163.93
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The REBL LED High Bay by Lithonia Lighting features patent pending micro-prism optics that deliver uniform and comfortable illumination across the entire space. Packaged in a sleek, yet rugged diecast housing, the REBL's unique design redefines the round high bay by combining aesthetics, optical control, and UGR performance without wasting energy. REBL is Performance Simplified.
Features
- The REBL LED High Bay by Lithonia Lighting features patent pending micro-prism optics that deliver uniform and comfortable illumination across the entire space. Packaged in a sleek, yet rugged diecast housing, the REBL's unique design redefines the round high bay by combining aesthetics, optical control, and UGR performance without wasting energy. REBL is Performance Simplified.
- TECHNOLOGY: 12,000/15,000/18,000 Adjustable Lumen Output (ALO) and 3500K/4000K/5000K Switchable White (SWW) features allow for this high bay to offer 9 potential configurations within one fixture, using two switches
- ENERGY SAVINGS: High-efficiency LEDs provide up to 187 LPW
- DIMMING: 0-10 volts driver for dimming down to 10 percent
- RATINGS: UL/C-UL listed to US and Canadian safety standards, Wet location listed, IP66, NEMA 4X, and NSF Splash Zone 2 rated
- VOLTAGE: UVOLT for 120-347 volts
- HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 100,000 hours (L70>100,000)
- INSTALLATION: Fixture includes patented flip hook with safety latch that can be flipped down and mounted with the ¾ inch threaded pendant mount; Optional cast loop or surface mount bracket available separately
- BATTERY: Field Installable 40 watt emergency battery pack
- WARRANTY: 5-year limited warranty
Documentation & Downloads
Specifications
Key Specifications
| Product Type | High Bay |
|---|---|
| Standard | UL |
| Lumens | Switchable |
| Lamp Type | LED - Static |
| Shape | Round |
| Environmental Conditions | Indoor |
| Wattage | 120 |
| Color Rendering Index (CRI) | 80 |
| Finish | Gloss |
| Maximum Operating Temperature | 55 |
| Style | Traditional |
| Lens Color | Clear |
| Lens | Yes |
| Length | 12.2 in |
| Width | 4.81 in |

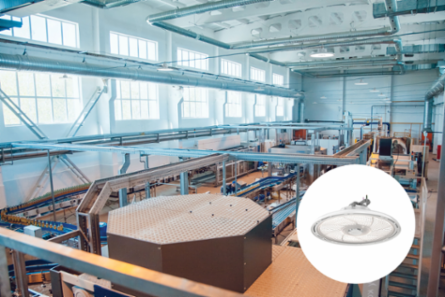

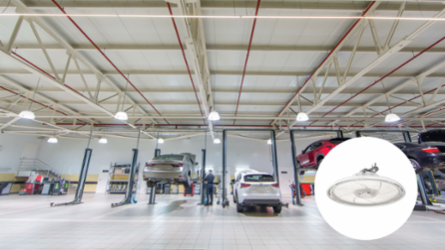

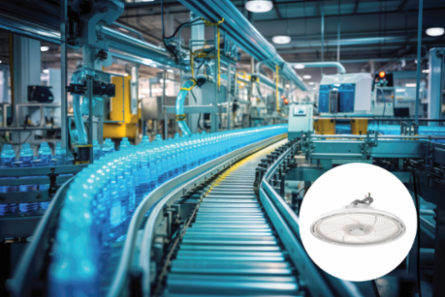

| Application | Manufacturing,Retail,Warehouses |
|---|---|
| Voltage Rating | 120-347 |
| Color | White |
| Number of Lamps | 1 |
| Mounting | Pendant,Suspended |
| Color Temperature | 3500 K,4000 K,5000 K,Variable |
| Material | Aluminum |
| Dimmable | Yes |
| Average Life | 38,000 hrs |
| Lamp Included | Yes |
| Lens Material | Polycarbonate |
| Warranty | 5 Year Limited |
| Height | 12.2 in |
| Weight | 6.21 lbs |
| Country of Origin | Vietnam |
