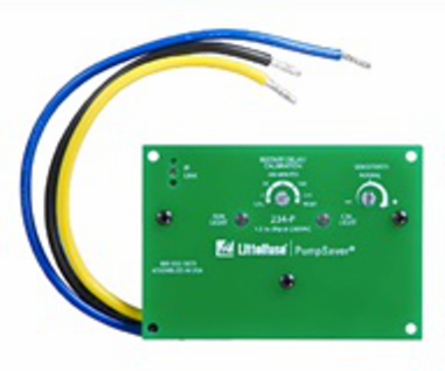

Littelfuse 234-P 234-P - 234 Series
- MPN: 234-P
- UPC: 079458990362
- PPN: LTF-234-P
CAD
$541.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
234-P - 234 Series
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 230VAC |
|---|---|
| Input Load Range (hp) | 1/3 - 3 hp |
| Output Load Rating (VA) | 3 hp @ 240VAC (17 amps max.) |
| Restart Delay Range | Over/Under Voltage: 2s; All other faults: Manual 2 - 225m |
| Overvoltage Trip Voltage (%) | 265VAC |
| Overcurrent Trip Class | 125% of calibration point |
| Power Consumption | ≤5W |
| Operating Temperature | -40° to 70°C (-40° to 158°F) |
| Input AC Line Frequency (Hz) | 50/60Hz (50Hz will increase all delay timers by 20%.) |
|---|---|
| Output Form | SPST |
| Rapid Cycle Timer (s) | 4 restarts allowed in 60s period |
| Trip Delay Range | Overcurrent: 5s; Dry-well: 4s |
| Undervoltage Reset Voltage (%) | 190VAC |
| Underload (%) | Adjustable (70 to 90% of calibrated run power) |
| Mounting Method | Inside a Grundfos® control box |
| Weight (lbs/g) | 0.88 lb. (14.0 oz. 396.9 g) |
