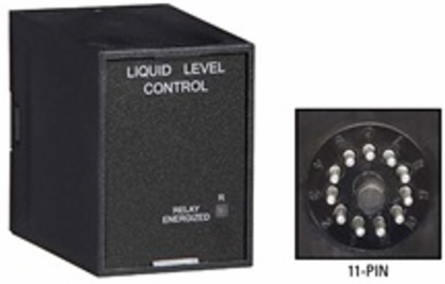

Littelfuse LLC643F26M LLC643F26M - LLC6 Series
- MPN: LLC643F26M
- UPC: 079458996432
- PPN: LTF-LLC643F26M
CAD
$167.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
See datasheet for operation and reset details.
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 120VAC |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Output Form | Non-isolated SPDT |
| Time Delay Range | 3s fixed |
| Reset Time (ms) | Manual / automatic reset |
| Sense Voltage | 12VAC nominal at probe terminals |
| Sense Resistance Tolerance | Fixed ±10% |
| Isolation Voltage (V) | ≥2500V RMS between input and output terminals |
| Termination Type | 11-pin relay type |
| Operating Temperature | -40° to 60°C (-40°F to 140°F) |
| Humidity | 95% relative non-condensing |
| Weight (lbs/g) | ≅7.3oz (207g) |
| Input Tolerance (%) | -0.3 |
|---|---|
| Output Type | Electromechanical relay |
| Output Load Rating (VA) | 10A resistive @ 240VAC; 1/4hp @ 125VAC; 1/2hp @ 250VAC |
| Time Delay Tolerance (%) | ±20% |
| Repeat Accuracy (%) | ±10% |
| Sense Resistance (Ohms) | 26 kΩ |
| Control Type | ON/OFF (single level) resistance sensor with built-in time delay to prevent rapid cycling |
| Surge Protection | IEEE C62.41-1991 Level A |
| Mounting Method | Plug-in socket |
| Storage Temperature (F/C) | -40° to 80°C (-40°F to 176°F) |
| Dimensions | 2.91 x 2.39 x 1.78 in. (73.9 x 60.7 x 45.2mm) |
