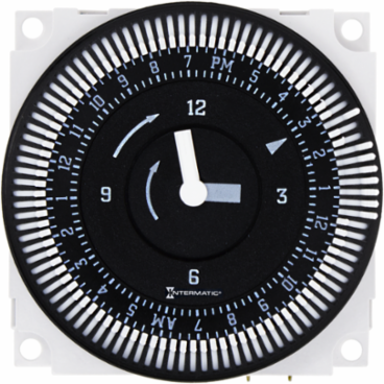

Intermatic FM1STUZ-120U 24-Hour 120V Panel Mount Timer Module, 15 Min Intervals, 21A SPDT
- MPN: FM1STUZ-120U
- UPC: 078275152816
- PPN: INT-FM1STUZ-120U
- UNSPSC: 39122208
CAD
$70.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.
Features
- 21 A SPDT Switch
- Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
- 72-hour carry-over battery backup on Q models
- Noise immune – ideal for robust applications
- Synchronous drive or quartz drive Q models with self-recharging battery backup
- True clock face, easy-to-set
- Available with or without override
- Compact size
- Clear plastic cover (DC-FME-A), sold separately
- Standalone or with indoor/outdoor enclosure, sold separately
Documentation & Downloads
Specifications
Key Specifications
- Warranty Period
- 1-Year limited
- Applications
- Aeration;Air Movement & Ventilation;Refrigeration Merchandiser;Septic Treatment;Generator Exercising
- Height
- 2.359 in
- Depth
- 1.25 in
ColorBlack
Marketing DescriptionThe FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.
Width2.359 in
Country of OriginMexico
