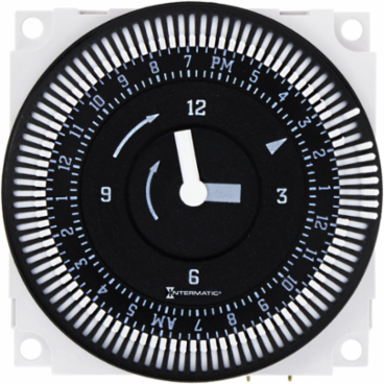

Intermatic FM1QTUZ-24U Electromechanical Timer Module 24-Hour 12/24V, Battery Backup, 21A, SPDT
Intermatic FM1QTUZ-24U Electromechanical Timer Module 24-Hour 12/24V, Battery Backup, 21A, SPDT
- MPN: FM1QTUZ-24U
- UPC: 078275152571
- PPN: INT-FM1QTUZ-24U
- UNSPSC: 39122208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$164.21/ EA
Description
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.
Features
- 21 A SPDT Switch
- Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
- 72-hour carry-over battery backup on Q models
- Noise immune – ideal for robust applications
- Synchronous drive or quartz drive Q models with self-recharging battery backup
- True clock face, easy-to-set
- Available with or without override
- Compact size
- Clear plastic cover (DC-FME-A), sold separately
- Standalone or with indoor/outdoor enclosure, sold separately
Specifications
Specifications
- Input Voltage Rating Range(s)
- 12/24 VDC, 12/24 VAC, 50/60 Hz
- Color
- Black
- Marketing Description
- The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.
- Length
- NA NA
- Width
- 2.359 in
- Country of Origin
- Mexico
Warranty Period1-Year limited
ApplicationsAeration;Air Movement & Ventilation;Refrigeration Merchandiser;Septic Treatment;Generator Exercising
Height2.359 in
WeightNA lbs
Depth1.25 in
