Tripp Lite LCR2400 2400W 120V 3U Rack-Mount Power Conditioner with Automatic Voltage Regulation (AVR), AC Surge Protection, 14 Outlets
Tripp Lite LCR2400 2400W 120V 3U Rack-Mount Power Conditioner with Automatic Voltage Regulation (AVR), AC Surge Protection, 14 Outlets
- MPN: LCR2400
- UPC: 037332040015
- PPN: TRP-LCR2400
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$934.05/ EA
Description
Maintains usable 120V nominal output to sensitive electronics during severe brownouts and overvoltages. Prevents surges, spikes and line noise from damaging circuitry. Mounts in 3U of standard 19-inch rack space.
Features
- Ideal for computers, routers, modems and home theater components
- Corrects under- and overvoltages in 89V–147V range
- Protects against spikes with 1440 joules of surge suppression
- Features 14 NEMA 5-15R outlets: 2 front and 12 rear
- Outlets arranged in dual Isobar isolated filter banks
- 2-year limited warranty
- $25,000 Ultimate Lifetime Insurance
- Protects Valuable Electronics
- Automatic Voltage Regulation (AVR)
- AC Line Surge Suppression
- EMI/RFI Line Noise Filtering
- Exclusive Isolated Filter Banks
- Built-In Diagnostics
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 1440
EMI / RFI AC Noise Suppression80 dB
Physical
- Form Factors Supported
- Standard 19 inch rack mount format using 3 rack spaces (3U).
- Shipping Dimensions (hwd / in.)
- 8.10 x 9.90 x 22.00
- Unit Dimensions (hwd / in.)
- 5.25 x 19 x 7.75
Material of ConstructionSteel
Shipping Weight (lbs.)20.30
User Interface, Alerts & Controls
- Front Panel LEDs

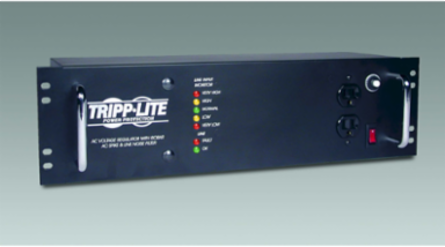

- 7 LEDs show incoming voltage status, protection present and line fault conditions
Voltage Regulation
- Voltage Regulation Description
- Maintains usable 120V nominal voltage during brownouts as low as 89VAC and over-voltages as high as 147VAC. Input voltages between 112V~127V are passed through unchanged.
- Brownout Correction
- Input voltages between 111V (+/-3V) and 103V (+/-3V) are boosted by 9%.
Overvoltage CorrectionInput voltages over 128V (+/-3V) are reduced by 10%
Severe Brownout CorrectionInput voltages below 102V (+/-3V) are boosted by 19%.
Input
- Input Plug Type
- NEMA 5-15P
Input Cord Length (ft.)12
Output
- Output (Watts)
- 2400
- Nominal Output Voltage(s) Supported
- 120V
Output Capacity DetailsSupports 120V 20A 2400W intermittent and 16A 1920W continuously when connected to a 120V 20A rated circuit; Supports 120V 15A 1800W intermittent and 12A 1440W continuously when connected to a 120V 15A rated circuit
Output Receptacles(14) 5-15R
Overview
- UPC Code
- 037332040015
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$25,000 Ultimate Lifetime Insurance
