Tripp Lite LC1200 1200W 120V Line Conditioner - Automatic Voltage Regulator (AVR), AC Surge Protection, 4 Outlets
Tripp Lite LC1200 1200W 120V Line Conditioner - Automatic Voltage Regulator (AVR), AC Surge Protection, 4 Outlets
- MPN: LC1200
- UPC: 037332040022
- PPN: TRP-LC1200
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$372.15/ EA
Description
Maintains usable 120V nominal output to sensitive electronics during severe brownouts and overvoltages. Prevents surges and spikes from damaging circuitry. Filters out potentially disruptive line noise.
Features
- Ideal for computers, routers, modems and home theater components
- Corrects under- and overvoltages in 89V–147V range
- Protects against spikes with 1200 joules of surge suppression

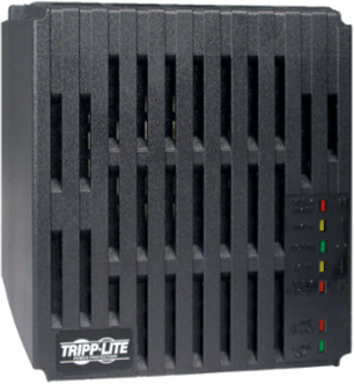

- Monitors power status with front-panel diagnostic LEDs

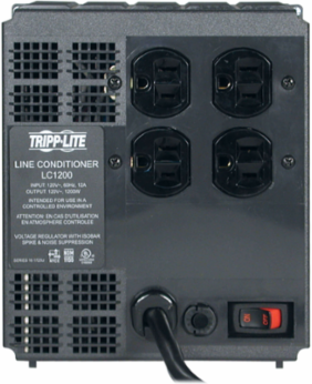

- Features 4 NEMA 5-15R rear outlets
- 2-year limited warranty
- $25,000 Ultimate Lifetime Insurance
- Protects Valuable Electronics
- Automatic Voltage Regulation (AVR)
- AC Line Surge Suppression
- EMI/RFI Line Noise Filtering
- Built-In Diagnostics
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 1200
EMI / RFI AC Noise Suppression75 dB
Certifications
- Certifications
- Tested to UL1012 (USA), cUL1012 (Canada), NOM (Mexico)
Physical
- Form Factors Supported
- Small Tower
- Shipping Dimensions (hwd / in.)
- 7.70 x 10.10 x 8.70
- Unit Dimensions (hwd / in.)
- 7.25 x 6 x 7
Material of ConstructionPlastic
Shipping Weight (lbs.)8.90
User Interface, Alerts & Controls
- Front Panel LEDs
- 7 LEDs show incoming voltage status, protection present and line fault conditions
Voltage Regulation
- Voltage Regulation Description
- Maintains usable 120V nominal voltage during brownouts as low as 89VAC and over-voltages as high as 147VAC. Input voltages between 114V~127V are passed through unchanged.
- Brownout Correction
- Input voltages between 113V (+/-3V) and 103V (+/-3V) are boosted by 9%.
Overvoltage CorrectionInput voltages over 128V (+/-3V) are reduced by 10%
Severe Brownout CorrectionInput voltages below 102V (+/-3V) are boosted by 19%.
Input
- Plug Type

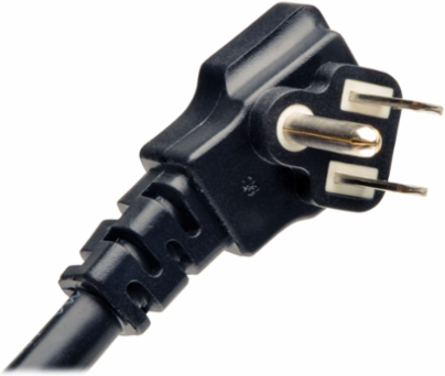

- Right-angle NEMA 5-15P input plug
Input Cord Length (ft.)7
Output
- Output (VA)
- 1200
- Nominal Output Voltage(s) Supported
- 120V
Output (Watts)1200
Output Receptacles(4) 5-15R
Overview
- UPC Code
- 037332040022
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$25,000 Ultimate Lifetime Insurance
