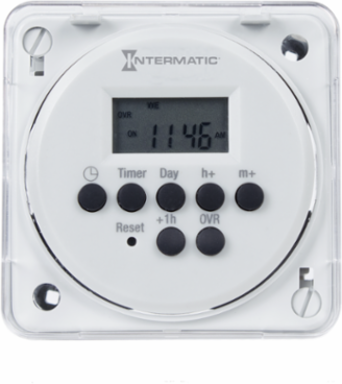

Intermatic FM1D20E-LV 24-Hour/7-Day Electronic Module, 12/24 VDC, 24 VAC, 15 A, 20 Setpoints, SPDT
- MPN: FM1D20E-LV
- UPC: 078275156869
- PPN: INT-FM1D20E-LV
- UNSPSC: 39122208
CAD
$213.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The FM1D20 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules with integrated cycle timer. The FM1D20 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
Features
- 24-Hour or 7-day applications.
- 20 Setpoint programs.
- Easy to program.
- Manual override with status indication.
- Self-recharging battery with backup protection up to 2500-hours.
- LCD display.
- A & E models come with clear dust cover.
- Cycle timer function.
Documentation & Downloads
Specifications
Key Specifications
| Warranty Period | 1-Year limited |
|---|---|
| Applications | Aeration;Air Movement & Ventilation;Generator Exercising;Refrigeration Merchandiser;Septic Treatment |
| Height | 3.83 in |
| Depth | 2.06 in |
| Color | White |
|---|---|
| Marketing Description | The FM1D20 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules with integrated cycle timer. The FM1D20 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring. |
| Width | 2.83 in |
| Country of Origin | China |
