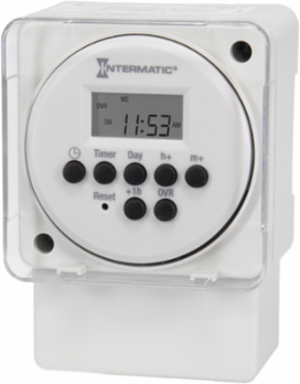

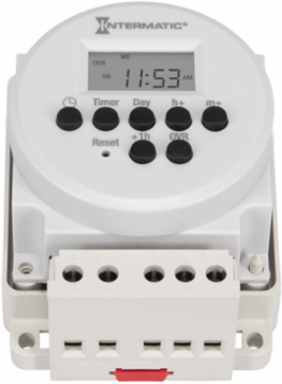

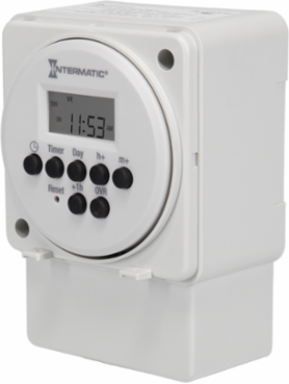

Intermatic FM1D20A-LV 24-Hour or 7-Day 12/24V Electronic Surface/DIN Rail Mount Module, 16A, 20 Setpoint Programs, SPDT

24-Hour or 7-Day 12/24V Electronic Surface/DIN Rail Mount Module, 16A, 20 Setpoint Programs, SPDT
24-Hour or 7-Day 12/24V Electronic Surface/DIN Rail Mount Module, 16A, 20 Setpoint Programs, SPDT
24-Hour or 7-Day 12/24V Electronic Surface/DIN Rail Mount Module, 16A, 20 Setpoint Programs, SPDT
24-Hour or 7-Day 12/24V Electronic Surface/DIN Rail Mount Module, 16A, 20 Setpoint Programs, SPDT
24-Hour or 7-Day 12/24V Electronic Surface/DIN Rail Mount Module, 16A, 20 Setpoint Programs, SPDT
  • MPN: FM1D20A-LV
  • UPC: 078275156814
  • PPN: INT-FM1D20A-LV
  • UNSPSC: 39122208

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$224.56/ EA

Description

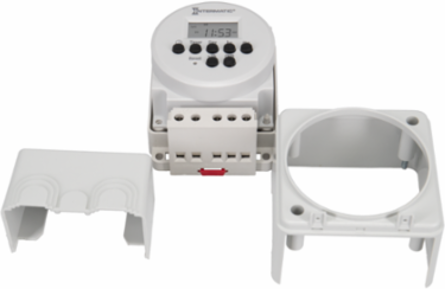

The FM1D20 Series Electronic Time Controls are for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. They are intended for either panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Features

  • 24-Hour or 7-day applications
  • 20 Setpoint programs
  • One Cycle Timer program
  • Three preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Daylight Saving Time adjustment

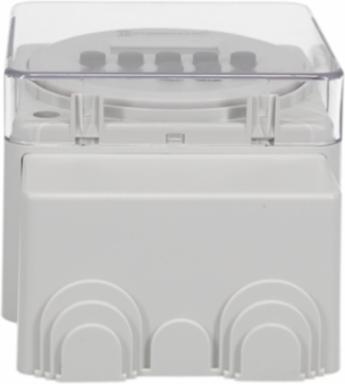

  • A & E models come with clear dust cover

Specifications

Specifications

Warranty Period
1-Year limited
Applications
Aeration;Air Movement & Ventilation;Refrigeration Merchandiser;Septic Treatment;Generator Exercising
Height
4 in
Depth
2.06 in
ColorWhite
Marketing DescriptionThe FM1D20 Series Electronic Time Controls are for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. They are intended for either panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
Width2.83 in
Country of OriginChina
