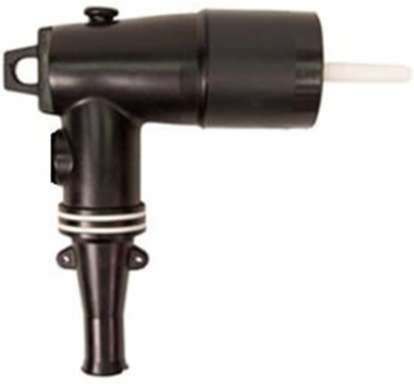

Thomas & Betts 261LR-B 25/28KV 200A ELBOW NO-SEALING KIT
- MPN: 261LR-B
- UPC: 075114278973
- PPN: T-B-261LR-B
CAD
$223.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25/28kV, 200 Amp, Loadbreak Elbow Connector (Housing Only), .635 inch - 0.905 Inch Cable Insulation Diameter No Sealing Kit
Specifications
Additional Information
- Application
- 25/28 kV, 200 Amp
- Color
- Black
- Includes
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
- Material
- Housing - EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 9.03 inch (299.4 mm) X 7.89 inch (200.4 mm) not including probe, 2.86 inch (72.6 mm) Diameter
- Standards
- ANSI/IEEE Standard 386
- UPC
- 075114278973
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Number of Batteries0
Product TypeLoadbreak Elbow Connector
Special Functions25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard.
Temperature Range-40 to +65 °C
Voltage Rating25 to 28 kV
Dimensions
- Product Net Weight
- 1 lb453.515 g
Container Information
- Package Level 2 Units
- 1 piece
- Package Level 2 Height
- 12.5 in318 mm
Package Level 2 Width19.12 in486 mm
Package Level 2 Depth / Length10.5 in267 mm
Classifications
- UNSPSC
- 39121421
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
WEEE CategoryProduct Not in WEEE Scope
Ordering
- EAN
- 0075114278973
Customs Tariff Number8535908020
