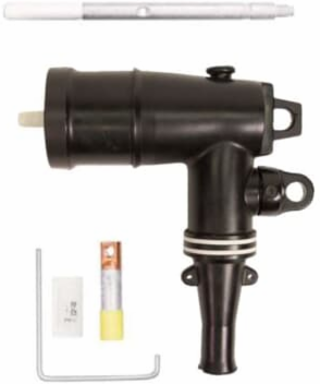

Thomas & Betts 162LR-B2200 15KV, 200A LB ELBOW NO SEALING KIT
- MPN: 162LR-B2200
- UPC: 075114414951
- PPN: T-B-162LR-B2200
- UNSPSC: 39121421
CAD
$295.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, #2 Stranded Wire Size. Copper Compression Lug
Features
- Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Conductor Range
- #4 STR/COMPR AWG , #3 SOL/COMPT
- Voltage Rating
- 15 kV
- Amperage Rating
- 200 A
- Temperature Rating
- -40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationThe 162LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems
StandardANSI/IEEE Standard 386
MaterialHousing - EPDM Rubber
ColorBlack
InsulationYes, EPDM Rubber
Environmental ConditionsProducts are designed and constructed for all applications
