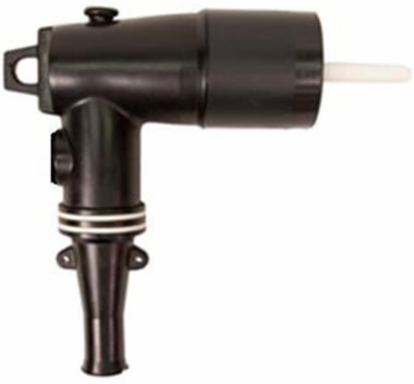

Thomas & Betts 261LR-C5270 25/28kV LB ELB 2/0STRN .805-1.060

MPN: 261LR-C5270
UPC: 075114283786
PPN: T-B-261LR-C5270
UNSPSC: 39121421

$244.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

25/28kV, 200 Amp, Loadbreak Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, 4/0 Stranded or 250 kcmil Solid Wire Size, Bi-Metal Compression Lug.

Specifications

Ordering

Country of Origin	United States (US)

Selling Unit of Measure	each

Additional Information

Application	25/28 kV, 200 Amp
Color	Black
Effective Date	20160126
Includes	1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
Material	Housing - EPDM Rubber
Product Type	Loadbreak Elbow Connector
Special Functions	25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	200 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	9.03 inch (299.4 mm) X 7.89 inch (200.4 mm) not including probe, 2.86 inch (72.6 mm) Diameter
Standards	ANSI/IEEE Standard 386
Voltage Rating	25 to 28 kV
