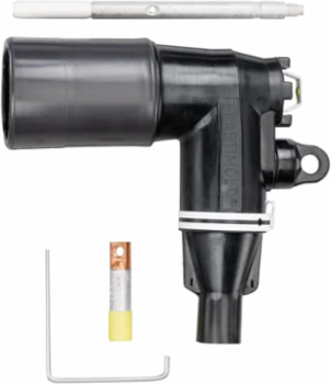

Thomas & Betts 376LR-J-5230 35KV 200A LB ELBOW W/TP J5230

MPN: 376LR-J-5230
UPC: 783786661497
PPN: T-B-376LR-J-5230
UNSPSC: 39121421

$788.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

Specifications

Additional Information

Application	35 kv, 200 Amp
Color	Black
Current Rating	200 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	PRIMARY CABLE ACC. 200 SEP CON
Size	Cable Insulation Diameter 0.980 inch to 1.180 inch.
Standards	ANSI/IEEE Standard 386
Voltage Rating	35 kV

Brand / Label	Elastimold
Connection Type	Push-In
Effective Date	19980115
Includes	1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instruction Sheet
Material	Housing - EPDM Rubber
Product Type	Loadbreak Elbow Connector with Test Point
Special Functions	35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Non-Corrosive Capacitive Voltage Test Point.
Temperature Range	-40 to +65 °C
