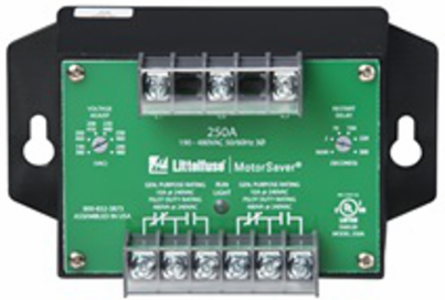

250A-MET - 250A Series
Littelfuse

Littelfuse 250A-MET 250A-MET - 250A Series

  • MPN: 250A-MET
  • UPC: 079458990461
  • PPN: LTF-250A-MET

CAD

$339.11

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the Littelfuse’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels. The Model 250A includes advanced single LED diagnostics. Five different light patterns distinguish between faults and normal conditions.

Documentation & Downloads

Specifications

Key Specifications

Input Voltage (V)
190 to 480VAC
Input AC Line Frequency (Hz)
50/60Hz (50Hz will increase all delay timers by 20%.)
Output Load Rating (VA)
Pilot Duty: 480VA @ 240VAC B300; General Purpose: 10A @ 240VAC
Trip Delay Range
Under/Over Voltage: 4s; Unbalance Phasing Faults: 2s
Undervoltage Trip Voltage
85%
Voltage Unbalance Trip Point (%)
6%
Termination Type
Torque: 7in-lbs; Wire: 12-18AWG
Operating Temperature
-40° to 70°C (-40° to 158°F)
Dimensions
2.93 in H x 5.27 in W x 2.95 in D (94.4 x 133.9 x 74.9 mm)
Maximum Input Power5W
Output FormDPDT - 2 Form C
Restart Delay RangeManual 2 - 300s adjustable
Trip Point Accuracy (%)±1%
Undervoltage Reset Voltage (%)88%
Voltage Unbalance Reset (%)4.50%
Mounting Method#8 screws
HumidityUp to 95% non-condensing per IEC 68-2-3
Weight (lbs/g)1.02 lb. (16.3 oz. 462.7 g)
