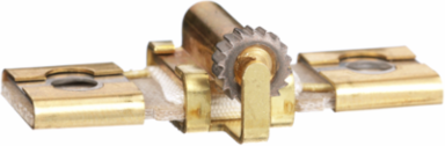

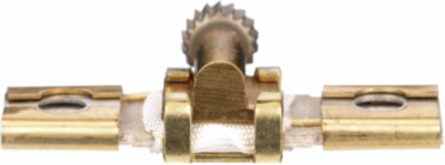

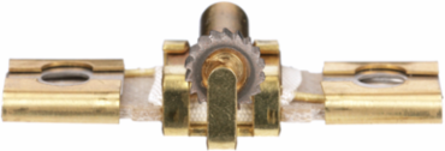

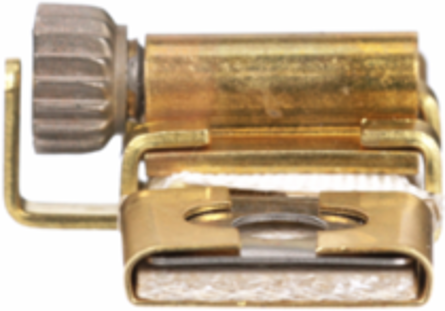

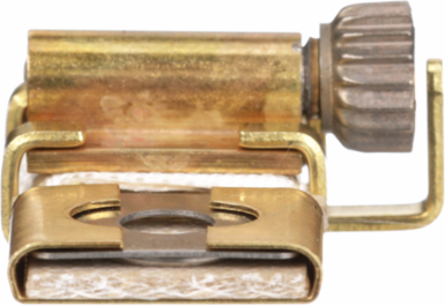

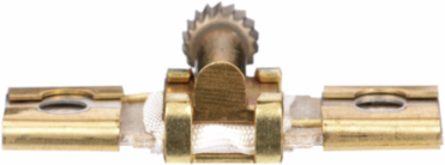

Square D B1.30 Thermal Unit Type S & B, Class 20, 13 Inch, Melting Alloy
- MPN: B1.30
- UPC: 785901587293
- PPN: SCH-B1.30
CAD
$49.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This Square D terminal block mounting track is designed specifically for 9080G terminal blocks. The track is pre-punched with oblong slots to make mounting the track to the panel easier. This terminal block track is 13 inches long. This track is made of galvanized steel.
Features
- Utilizing an ultra-reliable melting alloy sensing method, this thermal heater element continuously monitors phase currents to detect sustained electrical overloads. The design ensures repeatable, tamper-proof thermal memory protection, preventing expensive motor burnouts and winding damage across diverse commercial manufacturing lines.
- Built to withstand rigorous Canadian industrial environments, this thermal overload unit supports up to a 600V maximum rating and complies with stringent NEMA requirements for sizes up to Size 00-7 systems. The rugged construction ensures long-term thermal stability and exceptional electrical lifespan inside heavy-duty motor control panels.
Documentation & Downloads
Specifications
Additional
- Motor Tripping Class
- 20
- Thermal Overload Type
- Melting Alloy
- Pvc Free
- Yes
- China Rohs Regulation
- Out of China RoHS scope
Range of ProductB
Length13 in
Reach RegulationContains SVHC above threshold
Eu Rohs DirectiveOut of EU RoHS scope
