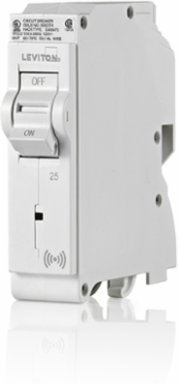

Leviton LB125-S 25A 1-Pole Smart Hydraulic Magnetic Circuit Breaker 120V
- MPN: LB125-S
- UPC: 078477814840
- PPN: LEV-LB125-S
CAD
$109.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25A 1-Pole Smart Standard Branch Circuit Breaker with Hydraulic Magnetic Trip Technology and Plug-On Installation. 120V
Features

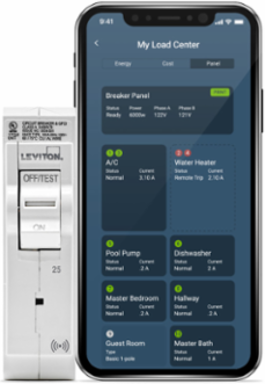

- SMART – Integrated with the My Leviton app, Leviton smart circuit breakers provide insightful data on home energy consumption, enhanced safety, and whole home solutions in conjunction with other smart Leviton products
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present.
- HYDRAULIC MAGNETIC – Precision trip technology ensures that the main breaker operates as intended from -40°C to 85°C (-40°F to 185°F) without re-rating
- INTUITIVE – LEDs communicate trip condition and type of fault, and remain illuminated even when tripped Have Questions? Search the knowledge base. *Designed for Leviton Load Centers only
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Electrical Specifications
- Amperage
- 25 A
- Pole
- 1
- Type
- Standard
Breaker TechnologyHydraulic Magnetic
Short Circuit Current Rating10 KA
Voltage120 VAC
Standards & Certifications
- CSA-C22.2 No. 5-02
- Yes
- FCC
- Yes
- UL 489
- Yes
EMC CompatibilityYes
RoHSYes
Product Features
- Dimensions
- 3.9" H x 1.0" W x 3.1" D
- Warranty
- Limited 10-Year Warranty (Mechanical), Limited 2-Year Warranty (Electronic)
- Wiring
- All Plug-on
SmartYes
Weight0.42 lbs.
