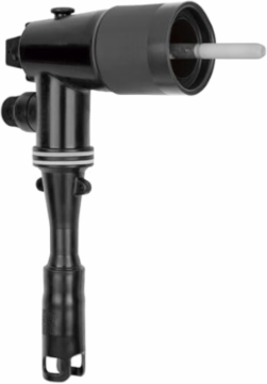

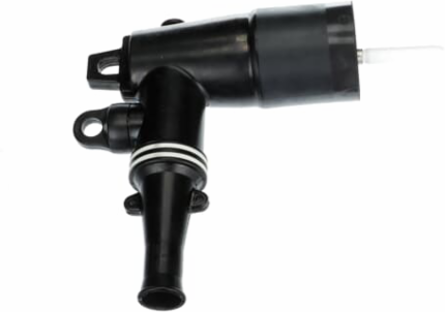

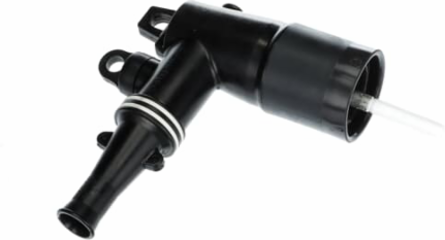

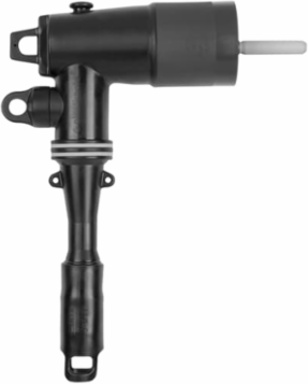

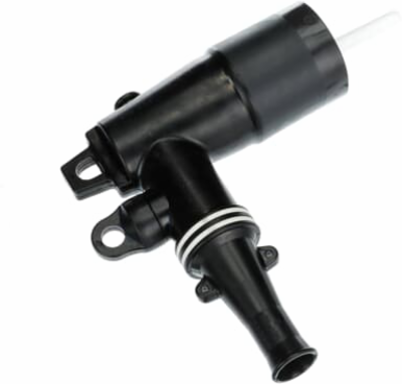

Thomas & Betts 262LRJS-C5240C 25KV 200A LB ELBOW FOR CANADA
- MPN: 262LRJS-C5240C
- UPC: 075114290760
- PPN: T-B-262LRJS-C5240C
- UNSPSC: 39121421
CAD
$252.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV, 200 Amp, Elbow. LoadBreak. Bi-Metal Compression Lug. Cable Insulation Diameter 0.805 inch to 1.060 inch. Conductor Size Compressed Stranded 1/0 or Compacted Solid 2/0. With Jacket Seal. With Test Point.
Specifications
Additional Information
- Application
- 200 kV, 200 Amp
- Color
- Black
- Effective Date
- 20160310
- Includes
- 1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 Butyl Auto Tape, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instructions sheet.
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Elbow Connector with Test Point and Jacket Seal
- Special Functions
- 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsAll Weatheronditions °C
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Size11.47 inch length x 8.20 inch width, 2.87 inch Diameter
StandardsANSI/IEEE Standard 386
Voltage Rating28 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
