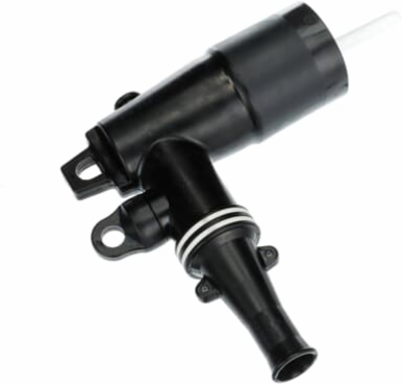

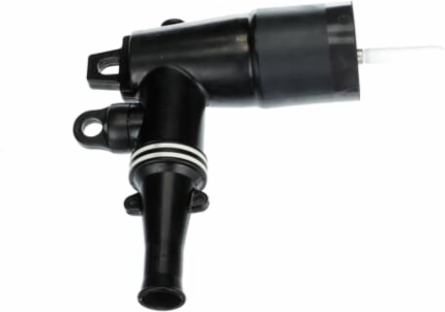

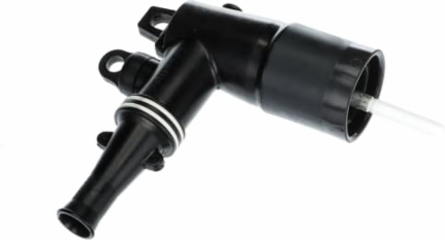

Thomas & Betts 262LR-C5240C 28KV 200A LB ELBOW FOR CANADA

MPN: 262LR-C5240C
UPC: 075114219280
PPN: T-B-262LR-C5240C
UNSPSC: 39121421

$262.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug. For Canada

Specifications

Additional Information

Application	200 kV, 200 Amp
Color	Black
Effective Date	20150214
Includes	1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instructions sheet.
Material	Housing - EPDM Rubber
Product Type	Loadbreak Elbow Connector with Test Point
Special Functions	28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	200 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
Standards	ANSI/IEEE Standard 386
Voltage Rating	28 kV
