Thomas & Betts 164J2 15KV 200A LB 2PT JUNCTION SST BRCKT
- MPN: 164J2
- UPC: 783786657575
- PPN: T-B-164J2
- UNSPSC: 26121630
CAD
$935.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

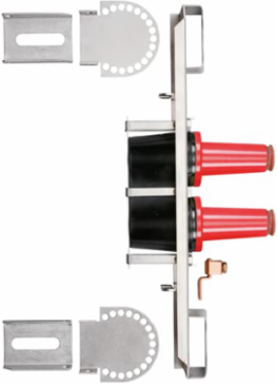

15kV 200 Amp, Loadbreak 2-Point Junction with Stainless Steel Bracket
Specifications
Additional Information
- Application
- Provide a fully shielded, fully submersible, separable, insulated assembly designed for energized operation. They are suitable for use on 15-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation. Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
- Effective Date
- 19980115
- Product Name
- PRIMARY CABLE ACC. 200 SEP CON
- Size
- Mounting Plate 17.50 inches (444.5 mm) long. 8.10 inch (205.8 mm) Tall, 3.62 inch (92.0mm) wide
- Standards
- ANSI/IEEE 386
Brand / LabelElastimold
MaterialEPDM Rubber and Stainless Steel Mounting Brackets and Hardware
Product Type2-Point Junction
Special Functions15kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Stainless Steel Mounting brackets and hardware.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
