Thomas & Betts 274RLR-J5250 25KV 200A LB REPLAC ELBOW TP J5250
- MPN: 274RLR-J5250
- UPC: 783786318438
- PPN: T-B-274RLR-J5250
- UNSPSC: 39121421
CAD
$952.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

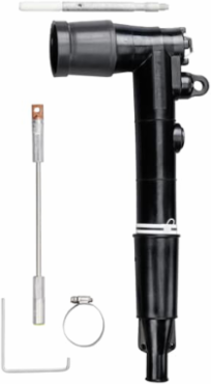

25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.
Specifications
Additional Information
- Application
- 25kV, 200 Amps
- Color
- Black
- Effective Date
- 20020219
- Includes
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet, 1 Hose Clamp, 1 V.D. Cap-Peroxide
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Replacement Elbow Connector with Test Point
- Special Functions
- Replacement Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeCable Insulation Diameter 0.980 inch to 1.180 inch.
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
