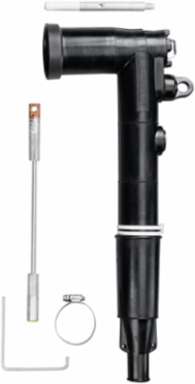

Thomas & Betts 168RLR-G5220 15KV 200A LB REPLACE ELBOW TP G5220
- MPN: 168RLR-G5220
- UPC: 783786128532
- PPN: T-B-168RLR-G5220
- UNSPSC: 39121421
CAD
$861.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- Designed for connecting to and operating 15kV Class, 95kV BIL apparatus.
- Color
- Black
- Effective Date
- 20000331
- Includes
- Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart, Hose Clamp and V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Replacement Elbow Connector with Test Point
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NamePRIMARY CABLE ACC. 200 SEP CON
SizeCable Insulation Diameter 0.760 inch to 0.950 inch
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
