Thomas & Betts K656LRTPFB-N0410 Stick Op Reducing Tap Plug Connector with Test Point
- MPN: K656LRTPFB-N0410
- UPC: 783786246793
- PPN: T-B-K656LRTPFB-N0410
CAD
$1502.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

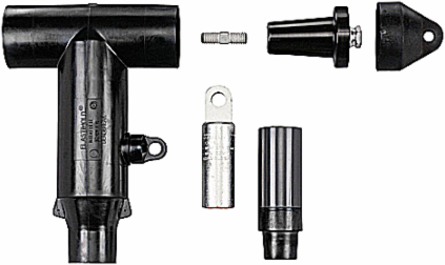

600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, Fixed Bolt, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Enclosure
- Yes, EPDM Rubber
- Amperage Rating
- 600/200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
IGCC4586 Electrical connector assembly
TypeStick Op Reducing Tap Plug Connector with Test Point
ApplicationConnect 600 Amp interface to 200 Amp Loadbreak Tap
Conductor RangeConductor Size AWG or kcmil, Compressed Stranded 1000.
ColorBlack
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
