Thomas & Betts K656CETP-L0320 25KV 600A DB TP COMBO-T L0320
- MPN: K656CETP-L0320
- UPC: 075114370240
- PPN: T-B-K656CETP-L0320
- UNSPSC: 39121421
CAD
$2765.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

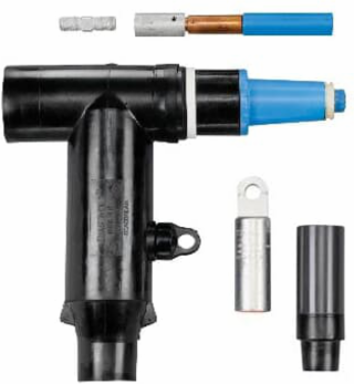

25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 1.180-1.465 inches (30.0-37.2 mm). Aluminum Conductor Material, Conductor Code 320 - 450 Stranded/Compressed or 500/550 Solid/Compact. No Sealing Kit.
Specifications
Additional Information
- Application
- 600 Amps, 25kV Connector
- Color
- Black
- Effective Date
- 20180403
- Includes
- Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.
- Material
- Housing - EPDM Rubber
- Product Type
- ComboT Elbow with Test Point
- Special Functions
- Reducing Tap Plug with Stud, Cable Adapter, and Lug. Test Point
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating600 A
Environmental ConditionsAll Weatheronditions °C
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Size13.31 inches width, 10.88 inch bottom edge to center of bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
