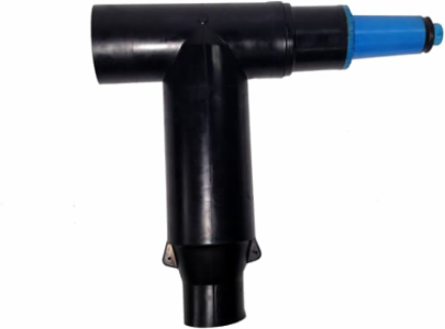

Thomas & Betts K655CETP-G0230 25KV 600A DB COMBO T NO SEALING KIT
- MPN: K655CETP-G0230
- UPC: 075114392266
- PPN: T-B-K655CETP-G0230
- UNSPSC: 39121421
CAD
$2774.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp, Deadbreak Combo T Elbow Reducing Plug with Stud, Cable Adapter and Lug. No test point, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size #1 Compressed/Stranded or 1/0 Solid/Compact or 50 mm2 Compact Only.
Specifications
Additional Information
| Application | Reducing Tap Plug with Stud |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Environmental Conditions | All Weatheronditions °C |
| Insulation Material | Yes EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR>1000V |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 25 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20190108 |
| Includes | Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions. |
| Material | Housing - EPDM Rubber |
| Product Type | ComboT Elbow |
| Special Functions | Reducing Tap Plug with Stud |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
