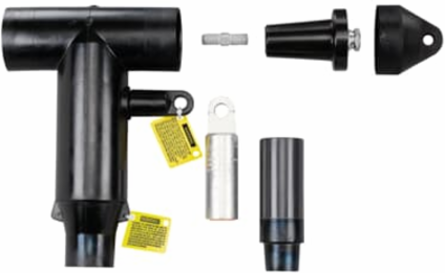

Thomas & Betts K655DLR-N0410-S 25KV 600A DIRECT TEST ELBOW W-SEAL
- MPN: K655DLR-N0410-S
- UPC: 075114412698
- PPN: T-B-K655DLR-N0410-S
- UNSPSC: 39121421
CAD
$1115.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15/25kV, 600 Amp, Direct Test Elbow with Cold-Shrinkable Jacket Seal, DeadBreak, Cable Insulation 1.515-1.780 inches, Aluminum Compression Lug, Conductor Size 1000 Stranded/Compressed
Features
- Jacket Seal. Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Conductor Range
- 1000 kcmil
- Voltage Rating
- 15 to 25 kV
- Amperage Rating
- 600 A
- Temperature Rating
- -40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15/25kV, 600 Amps
StandardANSI/IEEE Standard 386
MaterialHousing - EPDM Rubber
ColorBlack
InsulationEPDM Rubber
Environmental ConditionsAll Weather Conditions, Fully Submersible
