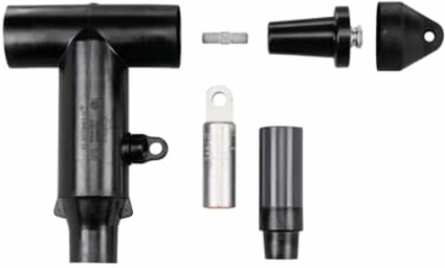

25KV 600A ELBOW W-SEALING KIT
Thomas & Betts

Thomas & Betts K656LR-L0380-SG3 25KV 600A ELBOW W-SEALING KIT

  • MPN: K656LR-L0380-SG3
  • UPC: 075114396646
  • PPN: T-B-K656LR-L0380-SG3
  • UNSPSC: 39121421

CAD

$1004.42

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

15/25kV 600 Amp Series Deadbreak Elbow with Test Point and Sealing Kit (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 700/750 or Compact/Solid 900. Cold-Shrinkable Jacket Seal with Copper Braid and Constant Force Spring Included.

Features

  • Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Size
Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing
Material
Housing - EPDM Rubber
Color
Black
Insulation
Yes EPDM Rubber
Environmental Conditions
Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15/25kV, 600 Amp Deadbreak Elbow Connection
StandardANSI/IEEE Standard 386
Conductor Range700 to 750 kcmil , 900 kcmil
Voltage Rating25 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
