25KV 600A VAULT STRETCHER W-SEALING
Thomas & Betts

Thomas & Betts K655VSL2-L0330-SG3 25KV 600A VAULT STRETCHER W-SEALING

  • MPN: K655VSL2-L0330-SG3
  • UPC: 075114384469
  • PPN: T-B-K655VSL2-L0330-SG3
  • UNSPSC: 39121421

CAD

$2390.77

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

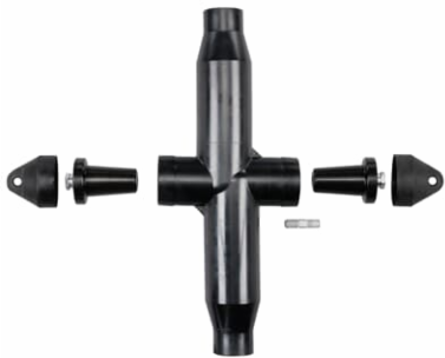

15/25kV, 600 Amps, 2-Way Vault-Stretcher. Cable Insulation Diameter range 1.37-1.63 inch (34.8-41.4mm). Connector Sizing 330 - 500 kcmil Stranded / Compressed, 600 kcmil Solid or Compact. Kit Includes (1) Vault Stretcher Housing, (2) Compression Lugs, (2) Cable Adapters (2) Insulated Plugs with Caps (1) Stud. Lubricant, Installation Instruction Sheet. Cold Shrinkable Seal with Copper Braid and Constant Force Spring also Included. Vault Stretcher Housing 21.75 inches x 8,69 inches.

Features

  • Fully Shielded, Fully Submersible Molded Rubber Housing. 100 Percent Peroxide-Cured Construction Includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Standard
ANSI/IEEE Standard 386
Conductor Range
500 kcmil , 600 kcmil
Voltage Rating
15 to 25 kV
Amperage Rating
600 A
Environmental Conditions
Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ConnectionCompression
SizeVault Stretcher Housing 21.75 inches x 8.69 inch
MaterialHousing - EPDM Rubber
ColorBlack
InsulationYes, EPDM Rubber
