Thomas & Betts K655VSL2-MAC04 25KV VAUL-STRETCHER W-SHEAR BOLTS

25KV VAUL-STRETCHER W-SHEAR BOLTS

Thomas & Betts K655VSL2-MAC04 25KV VAUL-STRETCHER W-SHEAR BOLTS

MPN: K655VSL2-MAC04
UPC: 075114354646
PPN: T-B-K655VSL2-MAC04
UNSPSC: 39121421

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2474.07/ EA

Loading add to cart quantity...

Description

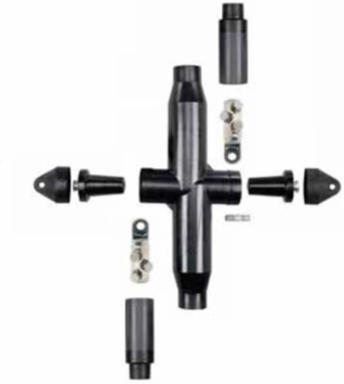

15/25kV, 600 Amps, 2-Way Vault-Stretcher with Shear Bolts. Cable Insulation Diameter range 1.37-1.63 inch (34.8-41.4mm). Connector Sizing AC04 - 750-1250 kcmil Stranded, Compressed, Solid or Compact. Kit Includes (1) Vault Stretcher Housing, (2) Aluminum Shear Bolts, (2) Cable Adapters and (2) Insulated Plugs with Caps and (1) Stud.

Specifications

Additional Information

Application: Deadbreak, Underground Cable Connections

Color: Black

Current Rating: 600 A

Environmental Conditions: All Weatheronditions °C

Insulation Material: Yes, EPDM Rubber

Product Name: ELECTRICAL CONNECTOR,>1000V

Special Functions: Copper or Aluminum Conductors. Installation uses Standard Wrench.

Temperature Range: -40 to +65 °C

Brand / LabelElastimold

Connection TypeShear Bolt

Effective Date20180105

Includes(1) Vault Stretcher Housing, (2) Aluminum Shear Bolts, (2) Cable Adapters and (2) Insulated Plugs with Caps and (1) Stud.

MaterialHousing - EPDM Rubber

Product TypeDeadbreak 2-Way Vault Stretcher with Shear Bolt Connectors

StandardsANSI/IEEE Standard 386

Voltage Rating15 to 25 kV

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach
