Thomas & Betts K656CH-DP0593493 Deadbreak Separable H-Joint Assembly
- MPN: K656CH-DP0593493
- UPC: 783786474998
- PPN: T-B-K656CH-DP0593493
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kv Compact H Joint Kit
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible, 100 Percent Peroide Cured EPDM Molded Rubber. Includes Intergral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression - Crimp
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of

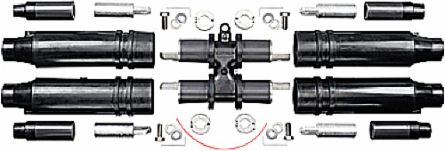

- 1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Insstallation Instructions
IGCC4586 Electrical connector assembly
TypeDeadbreak Separable H-Joint Assembly
ApplicationCompact Design is suitable for Small Vaults and Manholes.
SizeOverall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
MaterialHousing - EPDM Rubber
Voltage Rating15/25kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather Conditions
Packaging
- Outer Quantity
- 1
- Weight Uom
- 30 lbs. Each
Outer Dimensions (inches)17x12.5x8.25
