Thomas & Betts K676LR-G2260 25KV ELBOW 900A NO-SEALING KIT
- MPN: K676LR-G2260
- UPC: 075114351324
- PPN: T-B-K676LR-G2260
- UNSPSC: 39121421
CAD
$1085.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

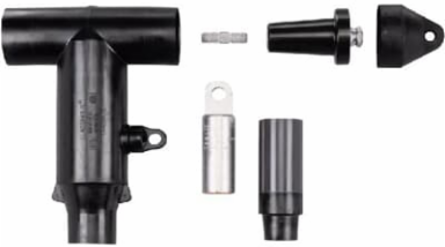

15/25kV, 900 Amp, DeadBreak, Elbow with Test Point (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation .850-1.050 inches, Copper Compression Lug, Conductor Size 3/0 Stranded/Compressed or 4/0 Solid/Compact.
Specifications
Additional
| Voltage | 15 to 25 kV |
|---|---|
| Temperature Range | -40 to +65 C |
| Conductor Size | 3/0 Stranded, 4/0 Solid |
| Connection Type | Compression |
| Insulation Material | EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| Color | Black |
| Amperage | 900 A |
|---|---|
| Size | Width 10.36 in., Length 13.00 in. (to Installation O-Ring) |
| Cable Insulation Thickness | 0.850-1.050 in. |
| Material | Housing - EPDM Rubber, Copper Compression Lug |
| Standards | ANSI/IEEE Standard 386 |
| Country of Origin | United States (US) |
| Brand | Elastimold |
