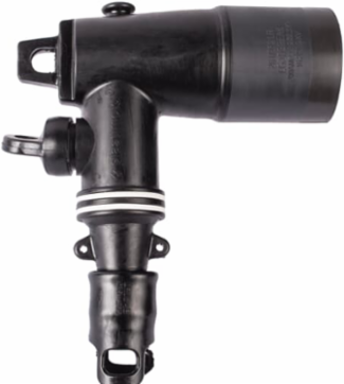

Thomas & Betts 262LRJS-C 25KV LOAD BREAK JS ELBOW, W-CS
- MPN: 262LRJS-C
- UPC: 075114193078
- PPN: T-B-262LRJS-C
CAD
$255.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point (Housing Only), .805 inch - 1.060 Inch Cable Insulation Diameter
Specifications
Additional Information
- Application
- 200 kV, 200 Amp
- Color
- Black
- Includes
- 1 Elbow Connector Housing
- Material
- Housing - EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 11.47 inch length x 8.20 inch width, 2.87 inch Diameter
- Standards
- ANSI/IEEE Standard 386
- UPC
- 075114193078
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Number of Batteries0
Product TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
Special Functions25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point.
Temperature Range-40 to +65 °C
Voltage Rating28 kV
Dimensions
- Product Net Weight
- 2.31 lb1.048 kg
Container Information
- Package Level 2 Units
- 1 piece
- Package Level 2 Height
- 12.5 in318 mm
Package Level 2 Width19.12 in486 mm
Package Level 2 Depth / Length10.5 in267 mm
Classifications
- UNSPSC
- 39121421
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
WEEE CategoryProduct Not in WEEE Scope
Ordering
- EAN
- 0075114193078
Customs Tariff Number8535908020
