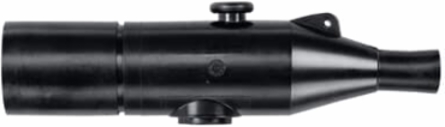

25KV STRAIGH RECEPTACLE 200A
Thomas & Betts

Thomas & Betts K151SR-B0220-SG3 25KV STRAIGH RECEPTACLE 200A

  • MPN: K151SR-B0220-SG3
  • UPC: 075114379601
  • PPN: T-B-K151SR-B0220-SG3
  • UNSPSC: 39121421

CAD

$643.73

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

15/25kV 200 Amp, Deadbreak Straight Receptacle, Bails are required, but not included, order separately. Cable Insulation Diameter 0.635 inch to 0.905 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS-G3 Jacket Seal and Grounding Kit Included. Comes with Straight Receptacle Housing, Receptacle Pin Connector, Lubricant, Installation Instructions and Crimp Chart

Features

  • Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Standard
ANSI/IEEE Standard 386
Conductor Range
#2 STR/COMPR AWG , #1 SOL/COMPT AWG
Voltage Rating
15 to 25 kV
Amperage Rating
200 A
Temperature Rating
-40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned to connect a cable to another cable or apparatus
Size2.74 inch wide x 9.54 inches long
MaterialHousing - EPDM Rubber
ColorBlack
InsulationYes, EPDM Rubber
Environmental ConditionsFully Shielded, Fully Submersible
