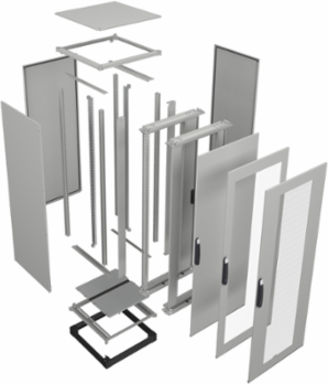

Schneider Electric NSYRC20 PanelSeT Side Plates, 2000x800 mm, Steel, Grey RAL 7035
- MPN: NSYRC20
- PPN: SCH-NSYRC20
CAD
$182.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF/SM side plates of the centred fixed rack. 2000 x 800 mm. Multi-purpose, electronic application. 19inch fixed rack centred mounting support. Fixing by screws on rack. Steel made. Grey RAL 7035. 2 side plates, fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | electronic application, multi-purpose |
| Carbon Footprint Of The Distribution Phase [A4] | 1.126114968, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 1.29714386, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-18 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Surface Finish | epoxy-polyester powder |
| Total Lifecycle Carbon Footprint | 42 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | nominal: 2000 mm |
| Accessory / Separate Part Category | enclosure accessory |
| Package Weight(Lbs) | 6.262 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 14 kg CO2 eq., 13.75245848 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 25 kg CO2 eq., 25.41894302 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Composition | fixing elements2 side plates |
| Fixing Mode | by screws 19" fixed rack |
| Mounting Support | 19" fixed rack, centred |
| Product Or Component Type | side plate |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1109023EN |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 98 |
| Width Nominal | nominal: 800 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8302423065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 41.59466033 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | side plate |
|---|
ETIM
| ETIM 8 | EC002617 |
|---|
| ETIM 9 | EC002617 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
