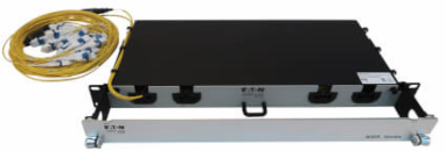

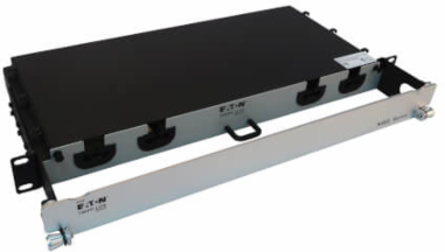

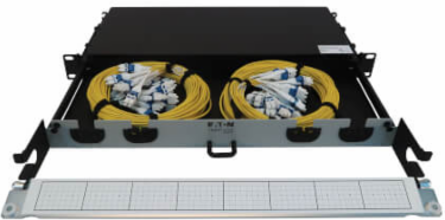

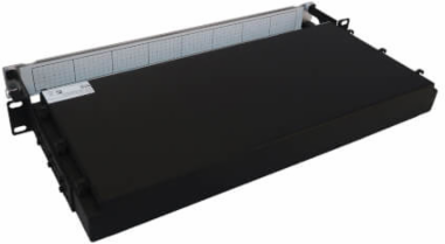

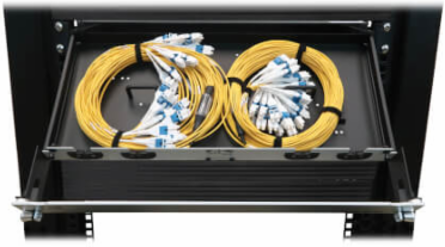

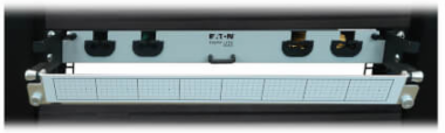

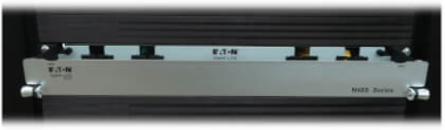

Tripp Lite N48S2L24L10 Preloaded Fiber Panel, 1U - 2x (12x LC/LC Duplex M/M) 24F Trunk Cables, OS2 Singlemode, 10 m (32.8 ft.)

MPN: N48S2L24L10
UPC: 037332262462
PPN: TRP-N48S-2L24L-10

$2538.30

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Preloaded Fiber Panel, 1U - 2x (12x LC/LC Duplex M/M) 24F Trunk Cables, OS2 Singlemode, 10 m (32.8 ft.)

Features

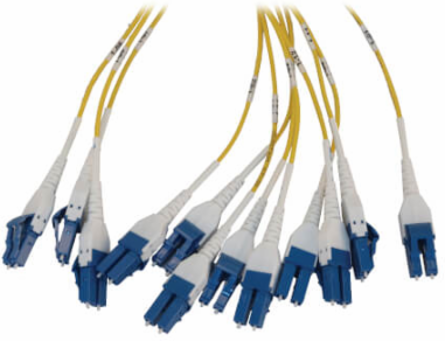

(2) LC Duplex to LC Duplex trunk cables, 10 m (32.8 ft.)
Installation guide included

Documentation & Downloads

Specifications

Material

Product Type	Preloaded
Panel Style	Preloaded Fiber Panel
Cable Jacket Color	Yellow
Cable Jacket Rating	OFNP

Technology	Singlemode
Endface Polish	UPC
Connector Color	Blue; White
All-in-One Kit	Yes

Dimensions

Panel Dimensions	17.32 x 1.73 x 10.20 in
Fiber Cable Length	10 m (32.8 ft)
Side B Connector	(12) LC Duplex (Male)
Number of Fibers	24
Core Diameter	9
Cable Outer Diameter	2.9 mm
Offset Ports	No

Panel Cable Number	2
Side A Connector	(12) LC Duplex (Male)
Optical Port	LC
Clad Diameter	125
Primary Coating Diameter	245
Primary Form Factor	Rackmount

Performance

Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM	0.36 dB/km
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)

Wavelength	1310nm; 1550nm
Attenuation @ 1550NM	0.22 dB/km
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Humidity Range	5% to 85% RH, Non-Condensing
