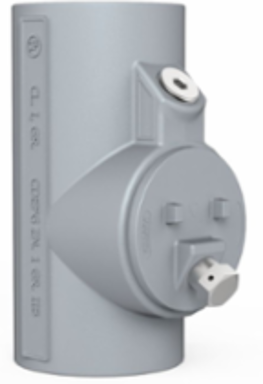

Killark EYD-9M Drain Seal Fitting, 3-1/2 Inch, Duraloy Iron, NPT Threads, Corrosion Resistant
- MPN: EYD-9M
- UPC: 783936111711
- PPN: HBL-EYD-9M
- UNSPSC: 39131708
CAD
$1933.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Killark’s EYD drain sealing fittings offers options for installing in vertical positions for harsh hazardous locations where there is a probability that liquid or other condensed vapor may be trapped within enclosures or in the conduit raceway system. EYD series can make any sealing needs significant by offering a minimized turn radius for maximized installations. Options are available in copper-free aluminum and Duraloy iron with superior electro-statically applied powder coating for the best corrosive resistance.
Features
- Threaded for Rigid Conduit or IMC
- Tapered threads (NPT)
- Simplified installation
- Internal drainage path provides a visual means to ensure that the compound chamber is properly filled
- Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound
- Unique design enables installation of drain/breather right after compound is poured – no waiting
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC
- Includes Drain Breather Fitting KDB-1
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Ratings | 3R |
| Color | Gray |
| Height | 9.21 in |
| Special Features | Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating. |
| Width | 4.625 in |
| Engineering Drawing 1 Display Text | Killark EYD-9 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | SEAL FTG FE 3-1/2" DRAIN |
| Harmonization Code | 7307110030 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D237 |
| Gross Weight with Packaging | 20.6 |
| Material | Zinc Plated Iron |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936111711 |
| NAICS Code | 3359323119 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Application | To minimize the passage of gases and vapors from one electrical installation to another through the conduit system while offering a degree of ventilation and draining of condensation. To confine any explosions from sealed enclosures and prevent pressure pilling between conduit systems. |
| Finish | Powder Epoxy Paint |
| Hub Size | 3-1/2" |
| Type | Sealing Fitting |
| Weight | 14.26 lb. |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11716 |
| UL File Number | E10514 |
| Series | EYD Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
