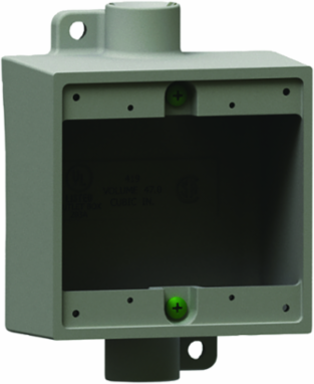

Killark 2FDC-2 3/4 Inch Aluminum Two Gang Deep Device Box, 7.75 x 6 x 4.125 Inch, NPT Threads
- MPN: 2FDC-2
- UPC: 783936150116
- PPN: HBL-2FDC-2
- UNSPSC: 39121308
CAD
$160.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4"Aluminum, 2FDC Type Two Gang Deep Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 4.125 in
- Length
- 7.75 in
- Color
- Gray
- Size
- 7.75 in x 6 in x 4.125 in
- Type
- Device Box
- Engineering Drawing 1 Display Text
- 2FDC-2 Engineering Drawing
- Nema Rating
- 3, 4, 4X
- Temperature Rating
- -50°C to +60°C
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- Feed-Thru
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936150116
- NAICS Code
- 3359326103
Dimensions7.75 in x 6 in x 4.125 in
Hub Size3/4"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet2
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Width6 in
Finish TypePowder Epoxy Paint
Number Of Outlets2
ARRA CompliantContact Manufacturer
Description - InvoiceDEVICE BOX 2GANG DEEP AL 3/4"
Harmonization Code7616995190
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging1.53
UL File NumberE3397
SeriesF Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
